20×127 PMX fuse holder 1500V AC/DC
PMX fuse holders
NEW
Download technical data
Range
| SIZE | Un (V) | In (A) | MICROSWITCH | POLES | REFERENCE |
|---|---|---|---|---|---|
| 20x127 | 1500V AC/DC | 63A | 1P | 485750 | |
| 2P | 485751 | ||||
| 1P | 485760 | ||||
| 2P | 485761 |
Technical data
| Rated current | 63A |
| Rated voltage | 1500V AC/DC |
| Maximum power dissipation | 16W |
| Power dissipation per pole | 80% In 0,8W 100% In 1,2W |
| Pollution degree | 3 |
| Protection index * | IP20 |
| Rated impulse withstand voltage | 12kV U imp |
| Withstand rating | 100kA AC/DC |
| Ambient temperature of service | -40°C ... 70°C (with carrier operation) -50°C ... 80°C (without carrier operation) |
| Storage temperature | -50°C ... 80°C |
| * To obtain an IP20 rating with cable protection of Ø ≤6mm, use the special protection accessory. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
UL4248-1 Fuse holders
UL486E Wiring terminals
Dimensions
| 1P | 2P |
| 303,5gr | 608,5gr |
Accessories
Microswitch
The standard version of the 20x127 fuse holder can be converted into the Micro Solo Fusion version with accessory.
| REFERENCE | DESCRIPTION |
| 485359 | Accessory 1 pole micro only fusion |

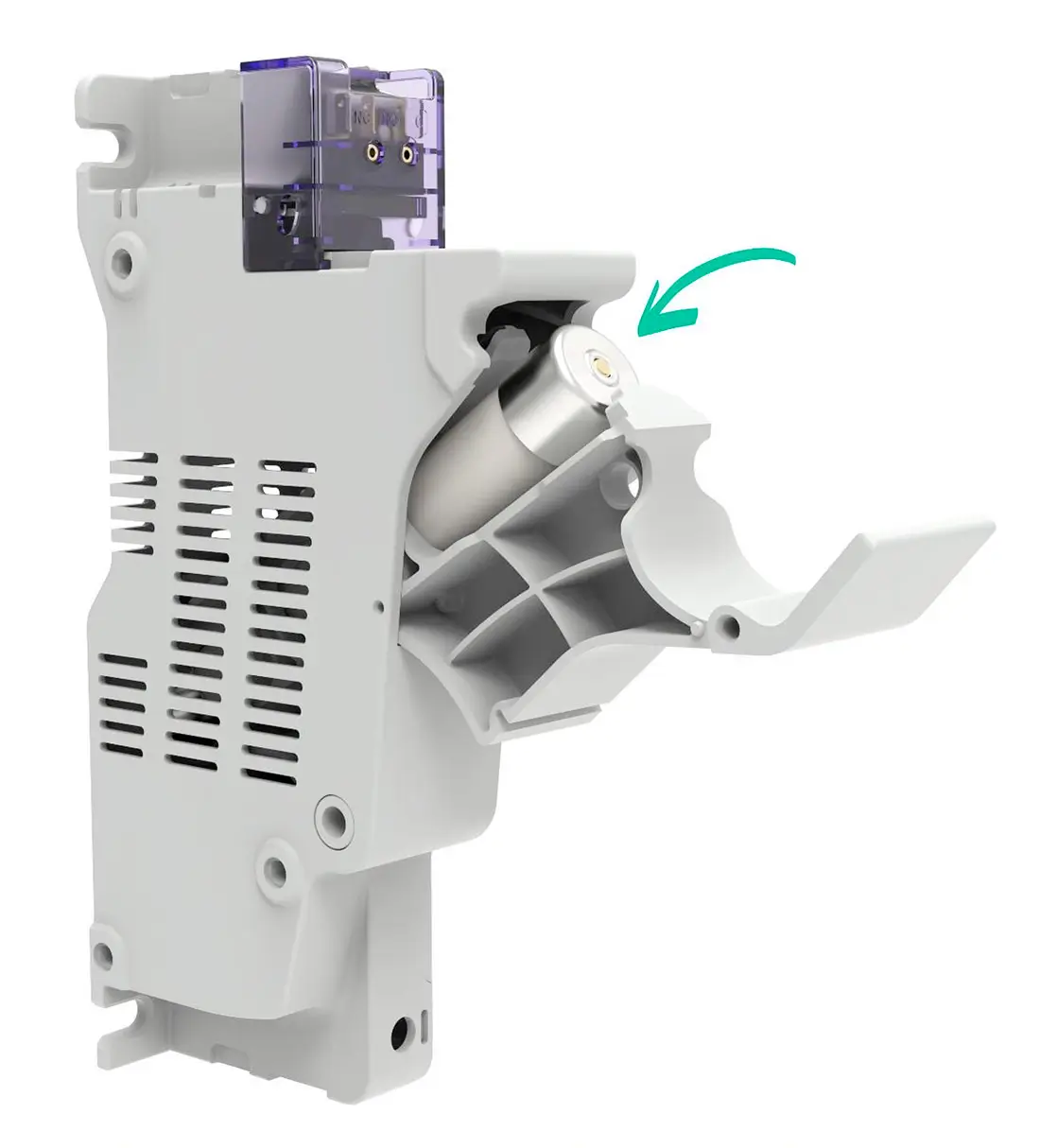

Microswitch fuse holder
Fuse links with striker must be mounted on fuse holders with microswitch system. Arrow indicates the correct position of the striker.

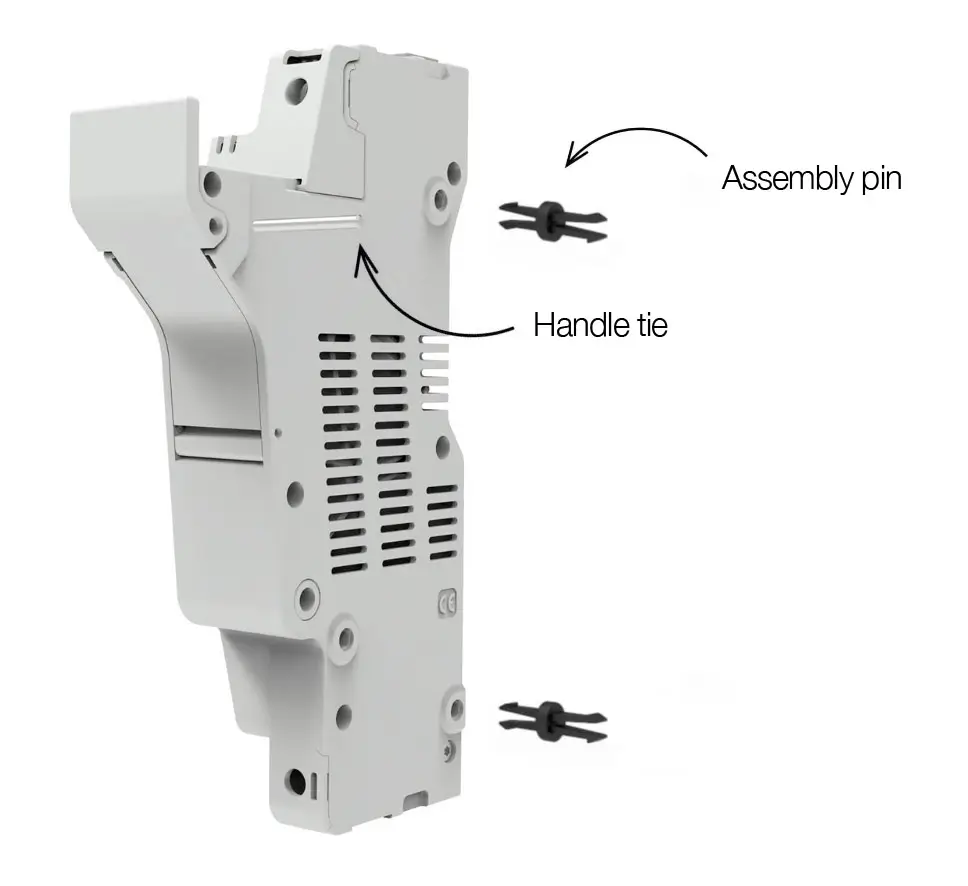

Multipolar assembly
Standard system by DF: 3 clips and 1 pin for each union between poles.
| REFERENCE | DESCRIPTION |
| 480005 | Pins for multipole assembly |
| 485356 | Handle ties for multipole assembly |

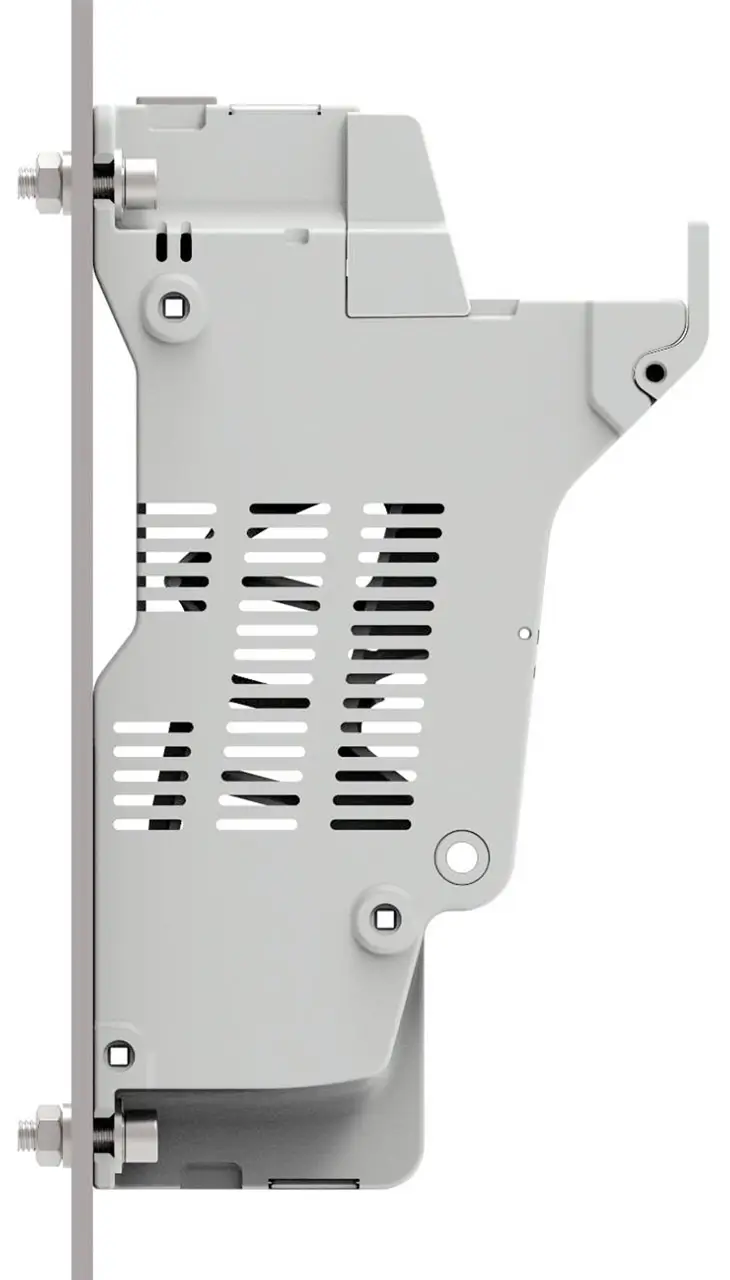

Panel fixation
Recommended screw: M6 (DIN912 / ISO4762)
Recommended torque: 4…6 Nm

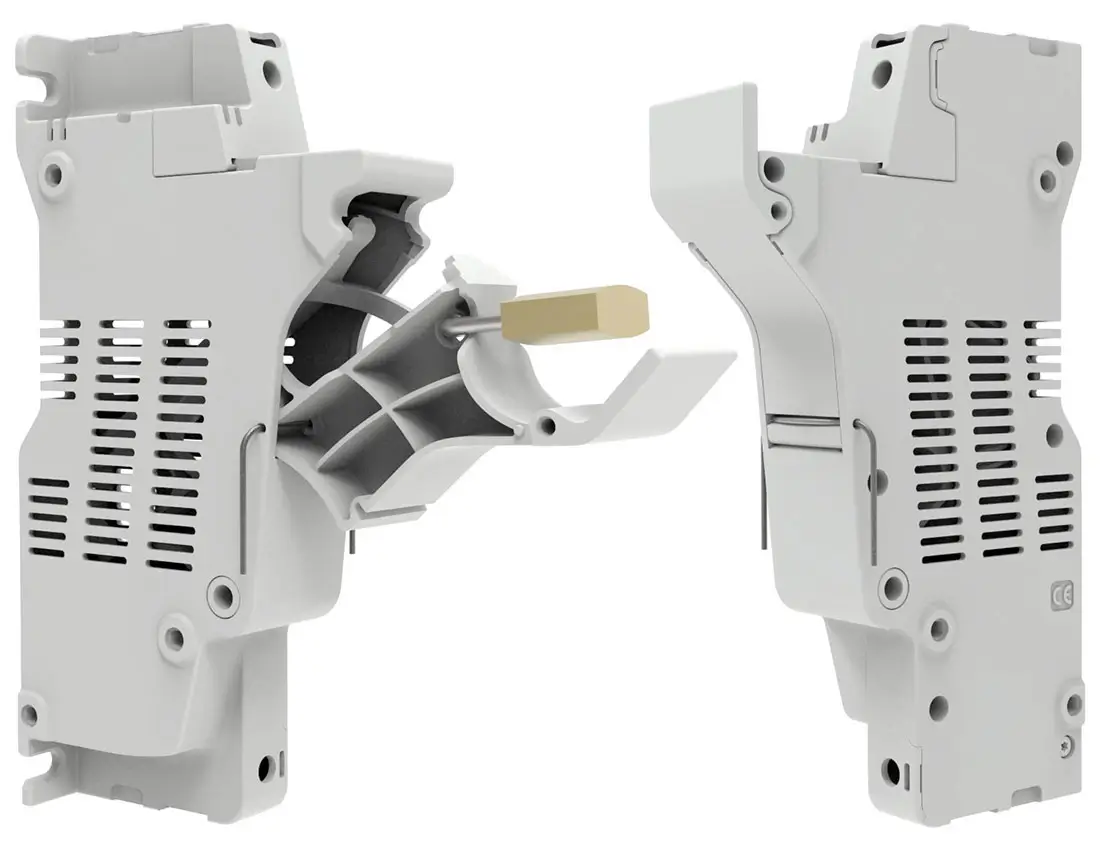

Fuse holder lock
Fuse holder lock to avoid the operation and connection.
Open handle: By padlock / By wire seal Ø1,5mm
Close handle: By wire seal Ø1,5mm

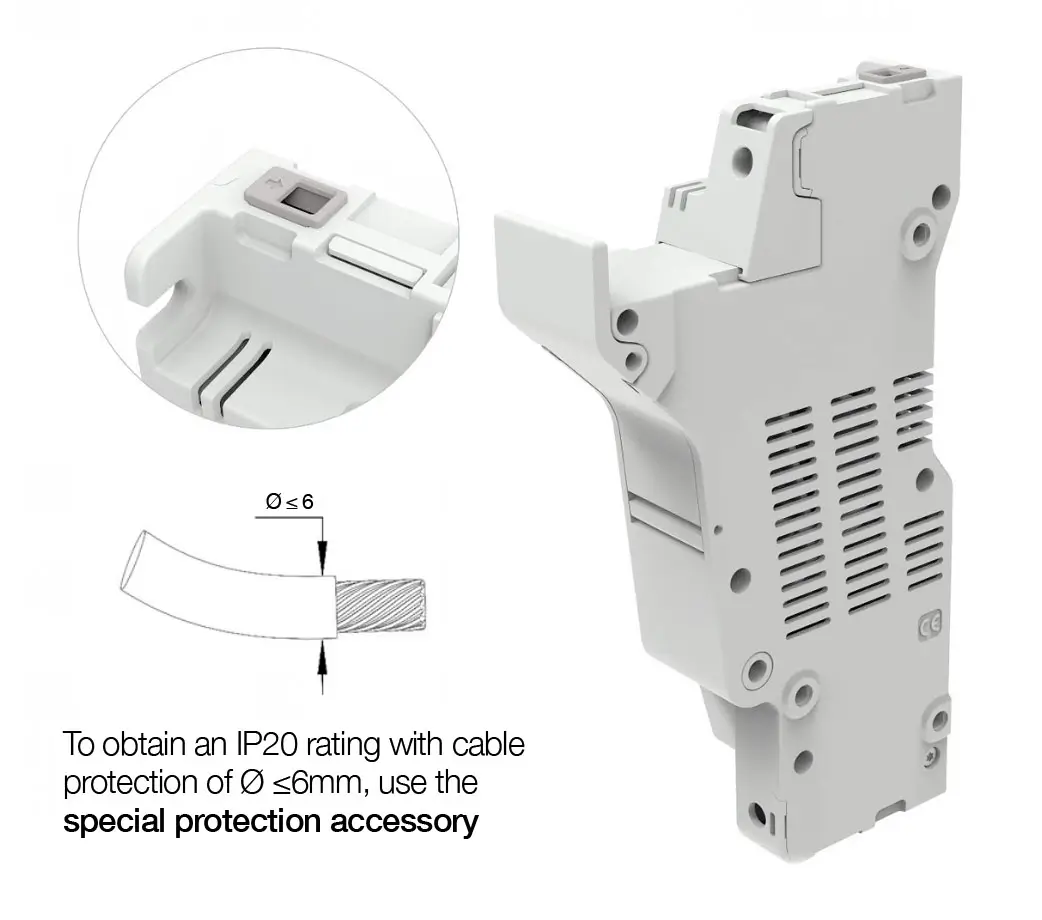

Special IP20 protection
Position the reducer accessory at the terminals when an IP20 protection is required with thin cables. Manual assembly.
| REFERENCE | DESCRIPTION |
| 485366 | Special IP20 protection accessory |

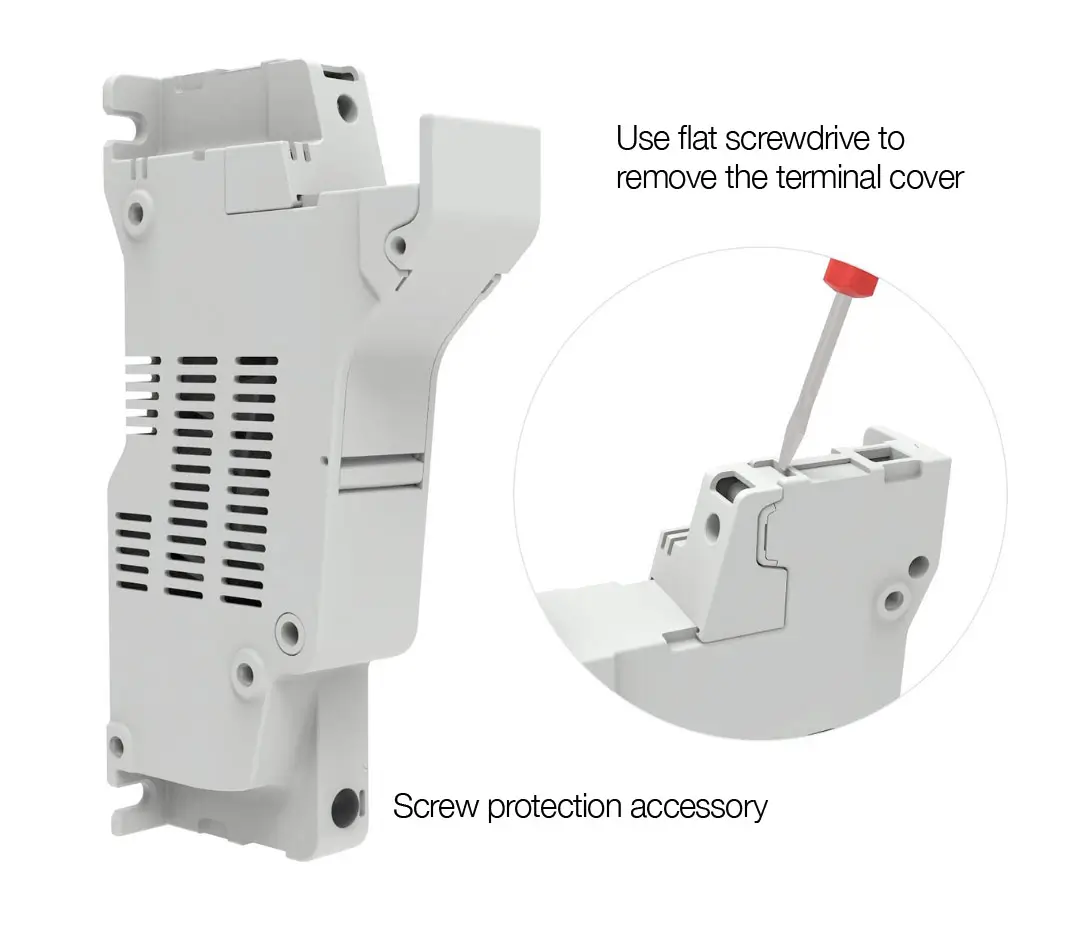

Screws protection accessory
Protection accessory to avoid the screws manipulation and improve the protection degree. Manual assembly.
Improve protection degree
Use accessory in lower terminal (ST and Micro versions)
Avoid screws manipulation
ST Version: Use in both terminals
Micro version: Use in lower terminal
| REFERENCE | DESCRIPTION |
| 485371 | Screw protection accessory |
Other sizes
 |
 |
 |
 |
 |
|
| NEW | |||||
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| U | 400V DC/AC | 690V AC 750V DC |
690V AC 750V DC |
690V AC 750V DC |
1000V AC/DC |
| IN | 25A | 32A | 50A | 100A | 100A |
| Certifications |      |
|
|
|
|
