10×38 gR Cylindrical fuse link for semiconductors
gR Cylindrical fuse links for semiconductors
Range
| SIZE | Un (V AC) | In (A) | REFERENCE | |
|---|---|---|---|---|
WITHOUT STRIKER |
WITH STRIKER |
|||
| 10x38 | 690V | 1 | 492000 | - |
| 2 | 492001  |
- | ||
| 3 | 492002 |
- | ||
| 4 | 492003 |
- | ||
| 6 | 492004 |
- | ||
| 8 | 492005 |
- | ||
| 10 | 492006 |
- | ||
| 12 | 492007 |
- | ||
| 16 | 492008 |
- | ||
| 20 | 492009 |
- | ||
| 25 | 492010 |
- | ||
| 32 | 492011 |
- | ||
Technical data
| Rated voltage | 690V AC (UL/IEC) 440V DC (L/R=10ms)(IEC) |
| Rated currents | 1A...32A |
| Rated breaking capacity | 200kA @690V AC 30kA @440V DC |
| Operating class | gR |
| Storage temperature | -40°C ... 90°C |
| Operating temperature * | -40°C ... 80°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-4
UL248-1
UL248-13
RoHS Compliant
Dimensions
Weight 8gr
Certifications
t-I characteristics

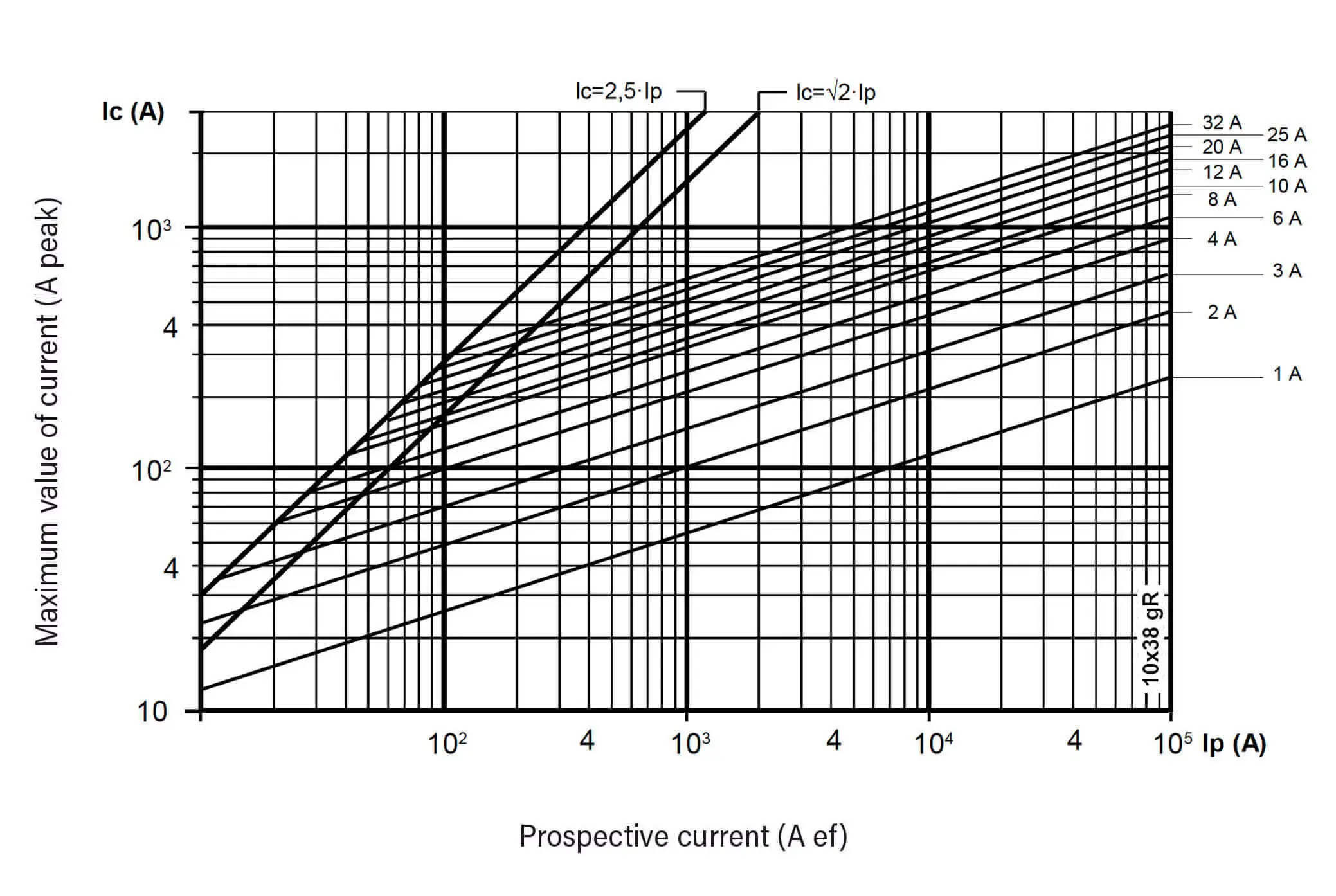

Cut-off characteristics
Power dissipation
| RATED CURRENT (A) |
REFERENCE | POWER DISSIPATION In (W) |
POWER DISSIPATION 0,8·In (W) |
PREARCING I2t (A2s) |
I2t 690V (A2s) |
|---|---|---|---|---|---|
| 1 * | 420000 | 0,75 | 0,45 | 0,2 | 1,2 |
| 2 | 420001 | 1,4 | 0,75 | 0,8 | 2,6 |
| 3 | 492002 | 1,7 | 0,95 | 2,5 | 8,0 |
| 4 | 492003 | 2,05 | 1,13 | 5,6 | 17 |
| 6 | 492004 | 3 | 1,56 | 16 | 48 |
| 8 | 492005 | 1,68 | 0,97 | 4,3 | 38 |
| 10 | 492006 | 2,09 | 1,20 | 6,6 | 59 |
| 12 | 492007 | 2,99 | 1,69 | 9,6 | 84 |
| 16 | 492008 | 4,27 | 2,31 | 17 | 150 |
| 20 | 492009 | 5,35 | 2,86 | 23,5 | 200 |
| 25 | 492010 | 5,52 | 2,94 | 60,2 | 512 |
| 32 | 492011 | 7,43 | 3,82 | 94 | 800 |
| * Not UL certified. | |||||
Compatible
 |
 |
|
| PMX 10x38 fuse holder | BAC 10×38 Open fuse base | |
| U | 690V AC 750V DC |
690V AC |
| In | 32A | 32A |
Other sizes
 |
 |
|
 |
 |
|
|---|---|---|
| U | 690V AC | 690V AC |
| IN | 4A...50A | 20A...100A |
| Breaking capacity | 200kA 30kA @440V DC |
200kA 30kA @440V DC |
| Certifications | |
|
