Range

SIZE Un (V AC) In (A) REFERENCE
NH000 690V 20 371025
25 371030
32 371035
40 371045
50 371050
63 371055
80 371060
100 371065

Technical data

Rated voltage 690V AC
440V DC (L/R=10ms)
Rated currents 20A...100A
Rated breaking capacity 100kA @690V AC
30kA @440V AC
Utilization category gS
Rated frequency 42...62Hz
Storage temperature -40°C ... 80°C
Operating temperature * -25°C ... 60°C
* For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current.

Standards

IEC/EN 60269-1
IEC/EN 60269-4
RoHS Compliant

Dimensions

A B C D E F G H I J K L
49 45 52 78,5 15 10 9,5 6 21 35 40 53

Weight  120gr

t-I characteristics

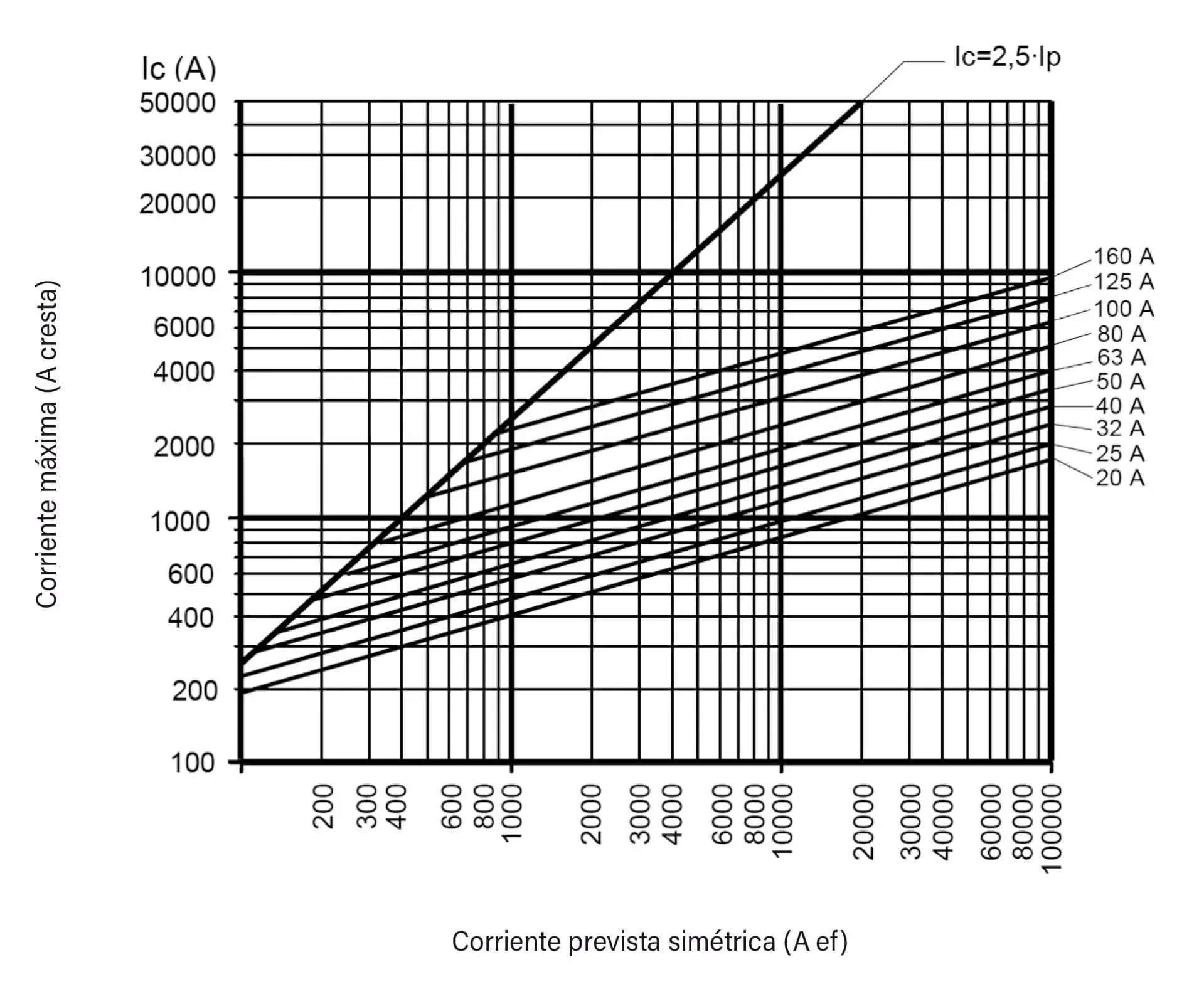

Cut-off characteristics

Power dissipation

RATED CURRENT
(A)
REFERENCE POWER DISSIPATION
(W)
PREARCING I2t
(A2s)
TOTAL I2t
(A2s)
TOTAL I2t 690V
(A2s)
20 371025 5,1 2,9 31 116
25 371030 5,6 3,2 49 181
32 371035 6,6 3,9 96 355
40 371045 7,2 4,2 196 724
50 371050 8,5 5,1 331 1224
63 371055 9,1 5,3 782 2897
80 371060 11 6,3 1420 5270
100 371065 12,5 7,1 2400 8880

Compatible

NH00 ST 690V/800V fuse base
U 690V
800V
In 160 A

Other sizes

U 690V AC 690V AC 690V AC 690V AC
IN 125A | 160A 125A...280A 250A...450A 355A...630A
Breaking capacity 100kA
30kA @440V DC
100kA
30kA @550V DC
100kA
30kA @550V DC
100kA
30kA @550V DC
