Accessories for NH ST fuse bases 690V/800V

NH ST fuse bases for NH Knife-blade fuse links

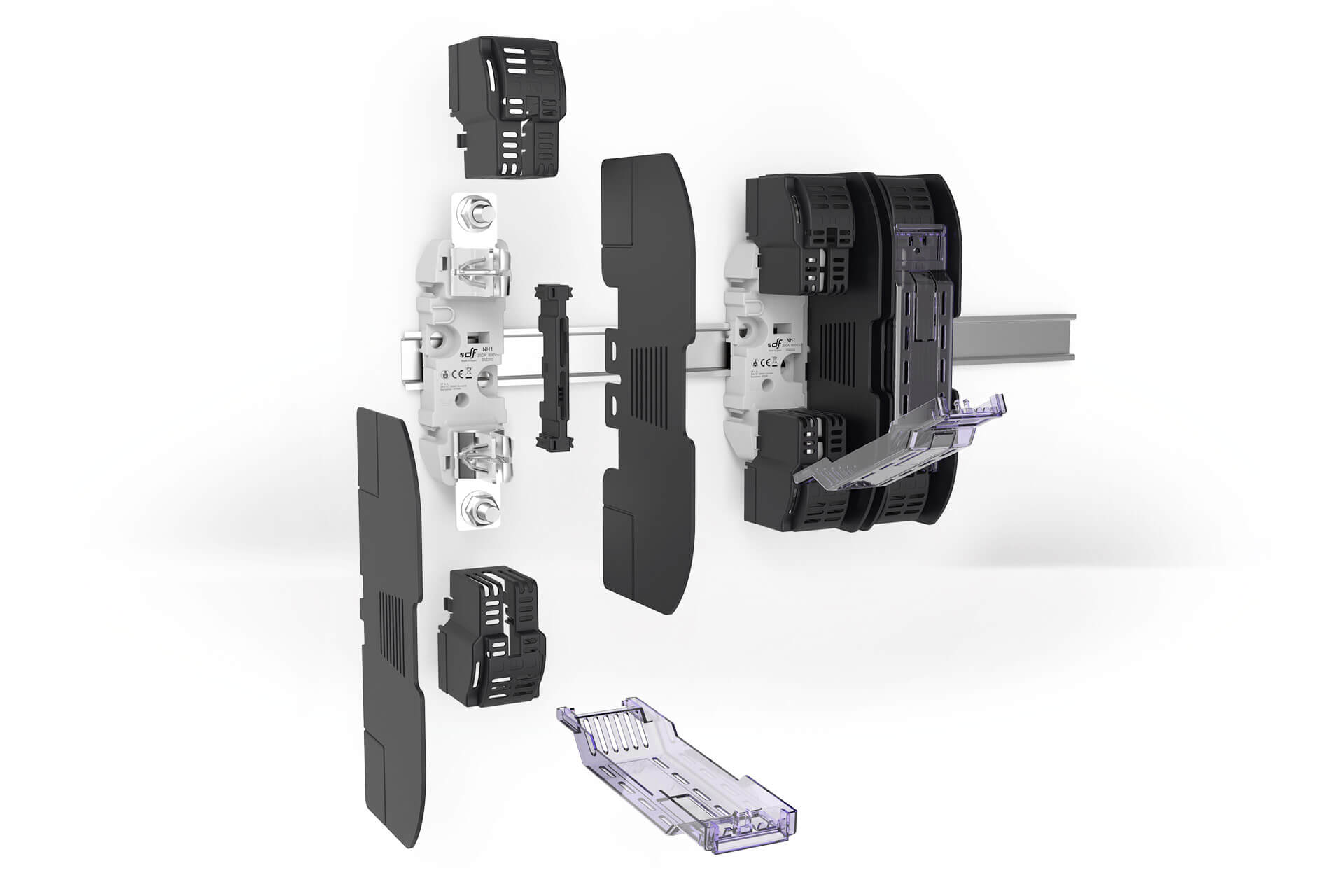

Wide range of accessories that enables IP20 protection index.

Partition walls
Separators
Microswitch
Terminal covers
Fuse links covers
IP20 Protection kits

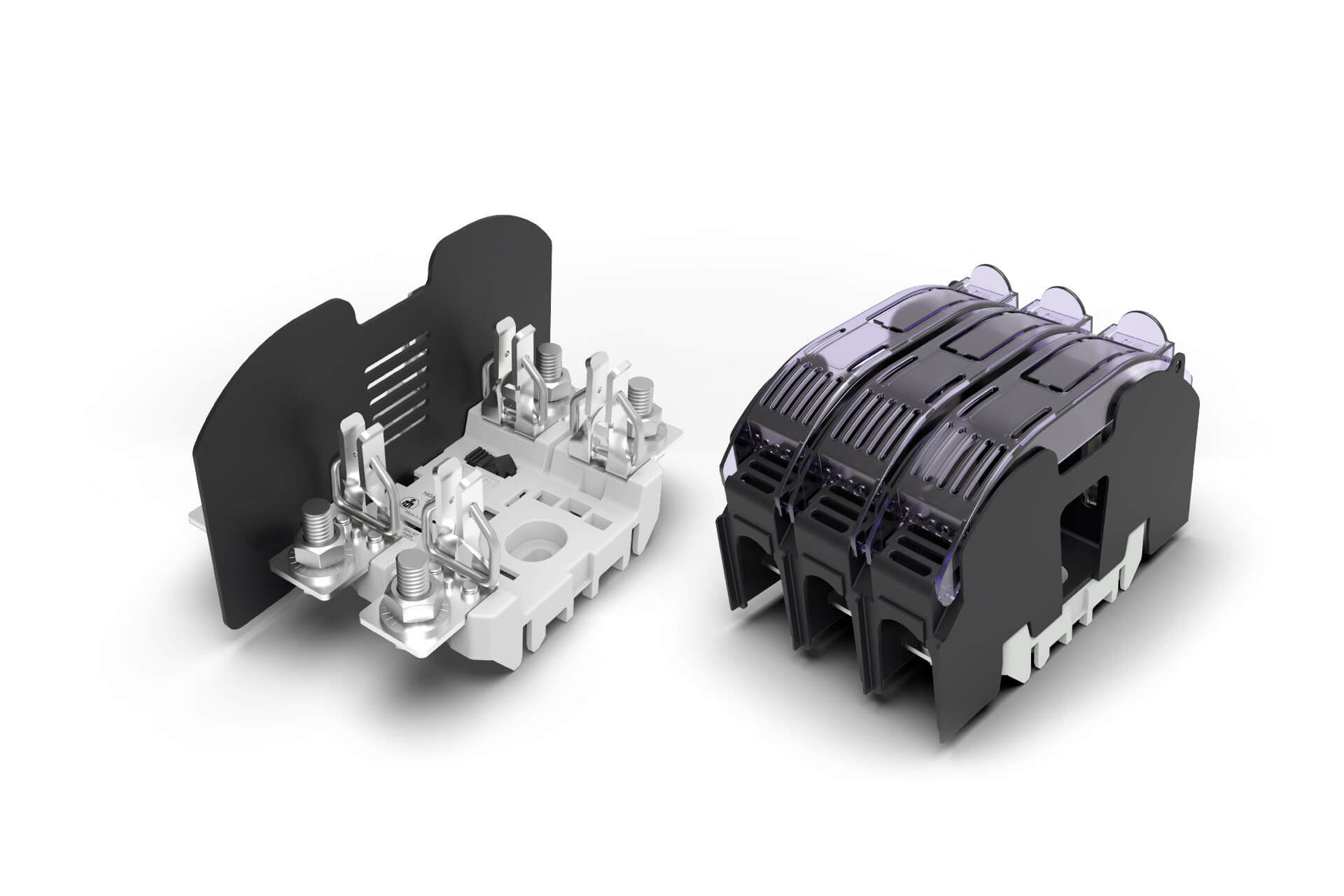

The fuse holder allows using simultaneously a microswitch for NH fuse links and IP20 protection accessories



Download technical data

REF 326100 / 326160 / 326200 / 326201 / 326250 / 326630 / 343125 / 325100 / 325160 / 325250 / 326250 / 326630 / 357010 / 325000 / 325009 / 325001 / 325005 / 325003 / 325007 / 325010 / 325015 / 325018 / 325020 / 325025 / 325030 / 325032 / 325036 / 325042 / 325046 / 325051

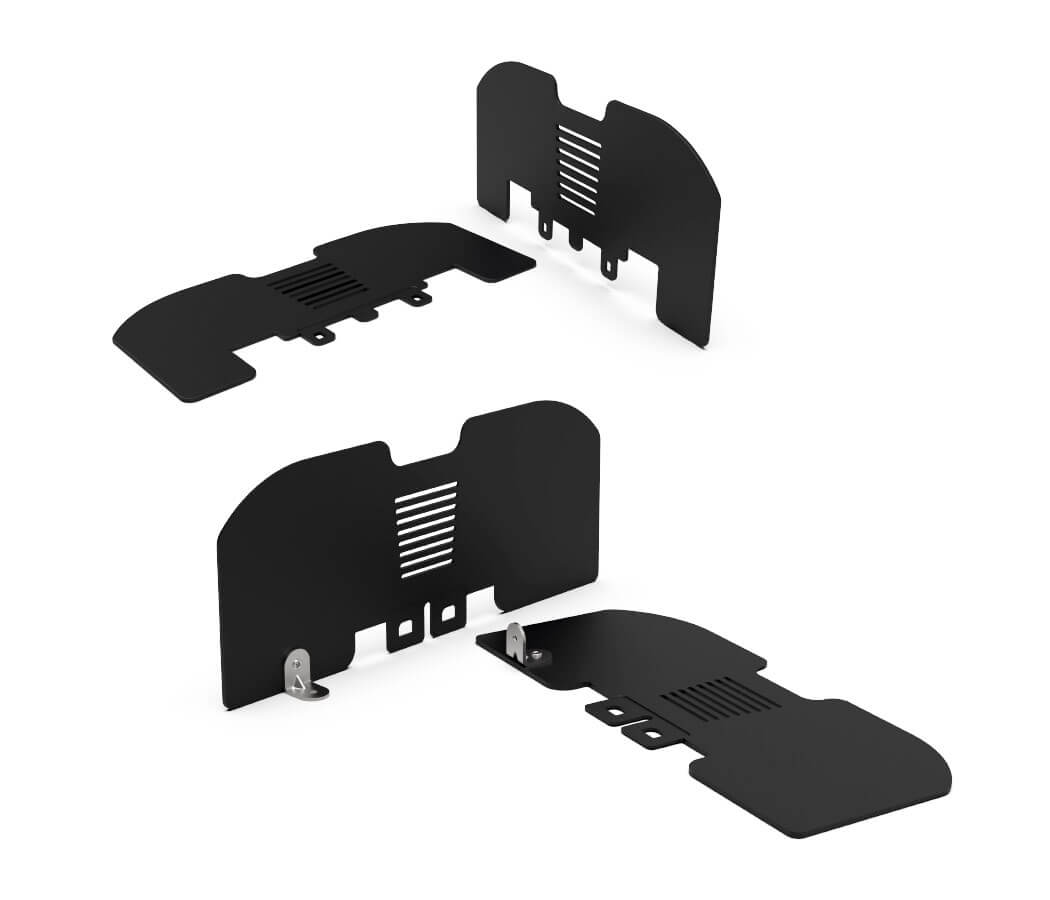

Partition walls

SIZE In (A) DESCRIPTION REFERENCE
NH00 160A DIRECTLY FIXED TO BODY 326100
NH0 160A DIRECTLY FIXED TO BODY 326160
NH1 250A FIXED TO SEPARATORS 326200
DIRECTLY FIXED TO BODY 326201
NH2 400A FIXED TO SEPARATORS 326250
NH3 630A FIXED TO SEPARATORS 326630
NH4 1250 SQUARE FIXING 343125

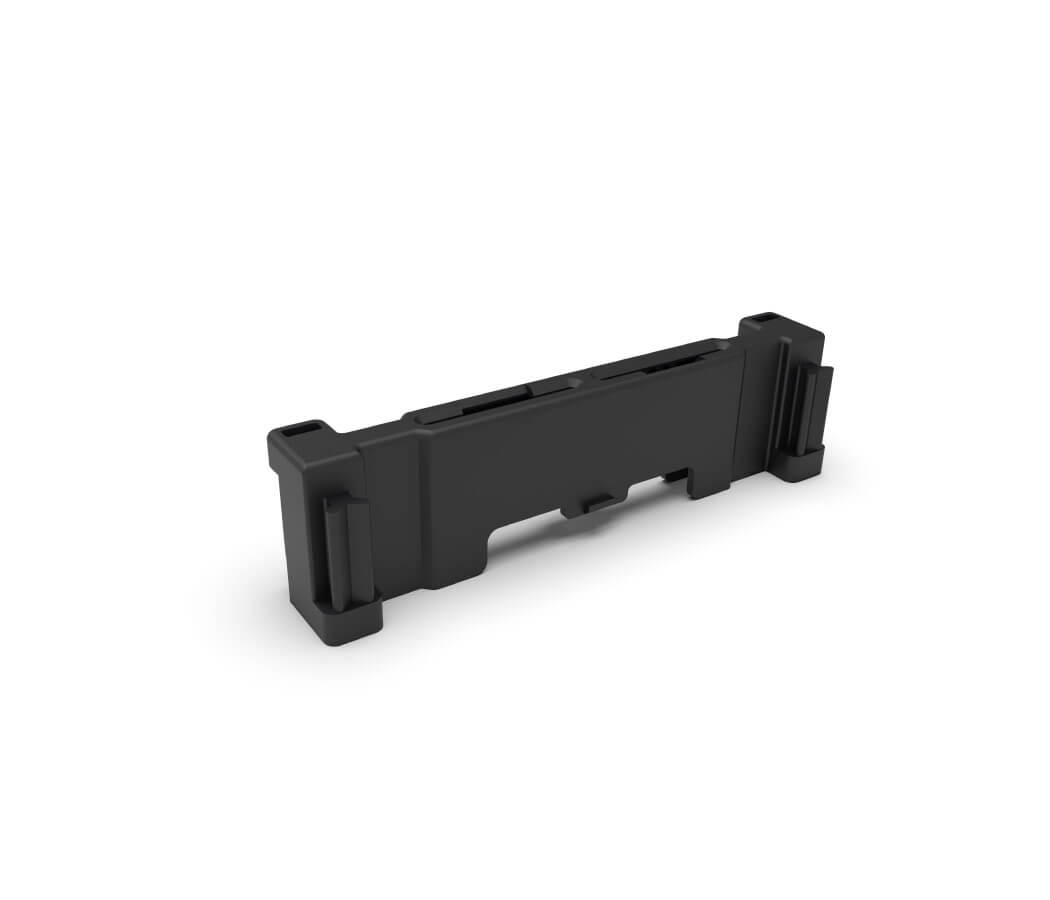

Separators

SIZE In (A) REFERENCE
NH00 160A 325100
NH0 160A 325160
NH1 250A 325250
NH2 400A 325400
NH3 630A 325630

Microswitch

SIZE DESCRIPTION REFERENCE
NH000...NH3 MICROSWITCH FOR NH FUSE LINKS 357010

Terminal covers

SIZE In (A) DESCRIPTION REFERENCE
NH00 160A SINGLE POLE 325000
THREE POLE INTEGRAL WITH PARTITION WALLS 325009
NH0 160A SINGLE POLE 325001
NH1 250A SINGLE POLE 325005
NH2 400A SINGLE POLE 325003
NH3 630A SINGLE POLE 325007

Fuse links covers

SIZE In (A) REFERENCE
NH00 160A 325010
NH0 160A 325015
NH1 250A 325018
NH2 400A 325020
NH3 630A 325025

IP20 Protection kits

SIZE DESCRIPTION REFERENCE
NH00 SINGLE POLE 325030
THREE POLE 325032
NH0 THREE POLE 325036
NH1 THREE POLE 325042
NH2 THREE POLE 325046
NH3 THREE POLE 325051
