Range

SIZE Un (V DC) In (A) POLES FIXING CONNECTION REFERENCE

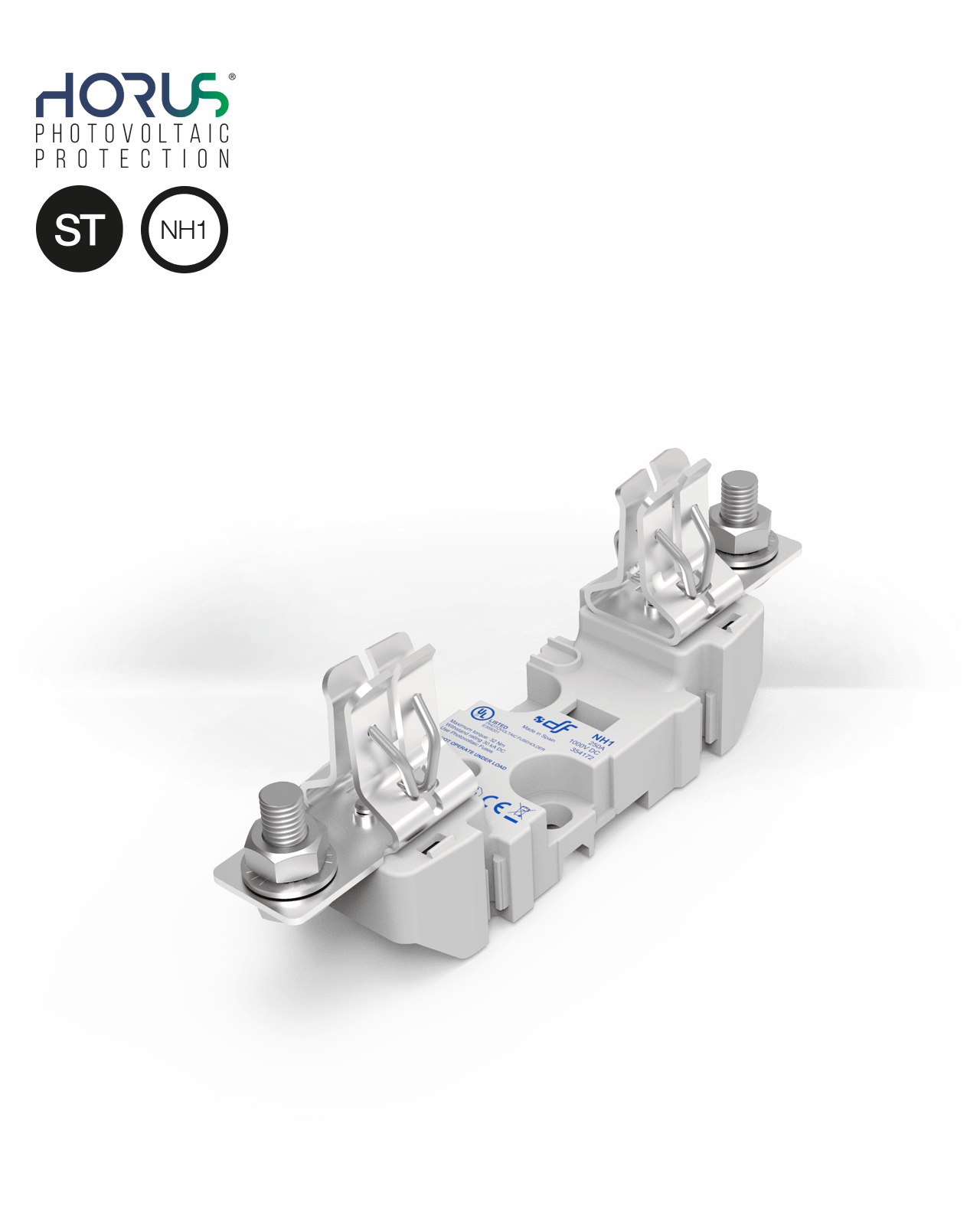

NH1 1000V 250A 1P DIN RAIL/SCREW SCREW 354172

Technical data

Contacts Silver plated copper
Body Thermoplastic, high resistance to temperature
Flammability: (UL94) V0
Glow wire test: (IEC-60695) 960ºC
Partition walls Thermoplastic, high resistance to temperature
Flammability: (UL94) V0
NH3: Phenolic resin laminated
Separators Thermoplastic, high resistance to temperature
Flammability: (UL94) V0
Terminal covers Thermoplastic, high resistance to temperature
Flammability: (UL94) V0
Glow wire test: (IEC-60695) 960ºC
Fuse link covers Thermoplastic, high resistance to temperature
Flammability: (UL94) V2
Glow wire test: (IEC-60695) 850ºC
Rated current 250A
Rated voltage 1000V DC
Maximum power dissipation 32W
Breaking capacity allows fuse links with breaking capacity up to 120kA
Protection index IP00 / IP20 ON TERMINALS
Ambient temperature of service -20°C ... 70°C
Storage temperature -40°C ... 80°C


DO NOT OPERATE UNDER LOAD


SAFETY NOTICE
Please capture the following QR code and read our safety notice carefully before installing our products.

Standards

IEC/EN 60269-1
IEC/EN 60269-2
UL4248-1 Fuse holders
UL4248-19 Photovoltaic fuse holders

Certifications

Dimensions

A B C D E F G H I J K L M N O P Q
200 175 48 28 146 77,5 35 80 107 230 M10 25 30 10,5 20 107 54

Weight  306gr

Accessories

The fuseholder allows using simultaneously a microswitch for NH fuse links and IP20 protection accessories.

Compatible

NH1 gPV 1000V DC fuse link
U 1000V DC
In 25A...200A
Breaking capacity 30kA

Other sizes

U 1000V DC 1000V DC
IN 400A 500A
