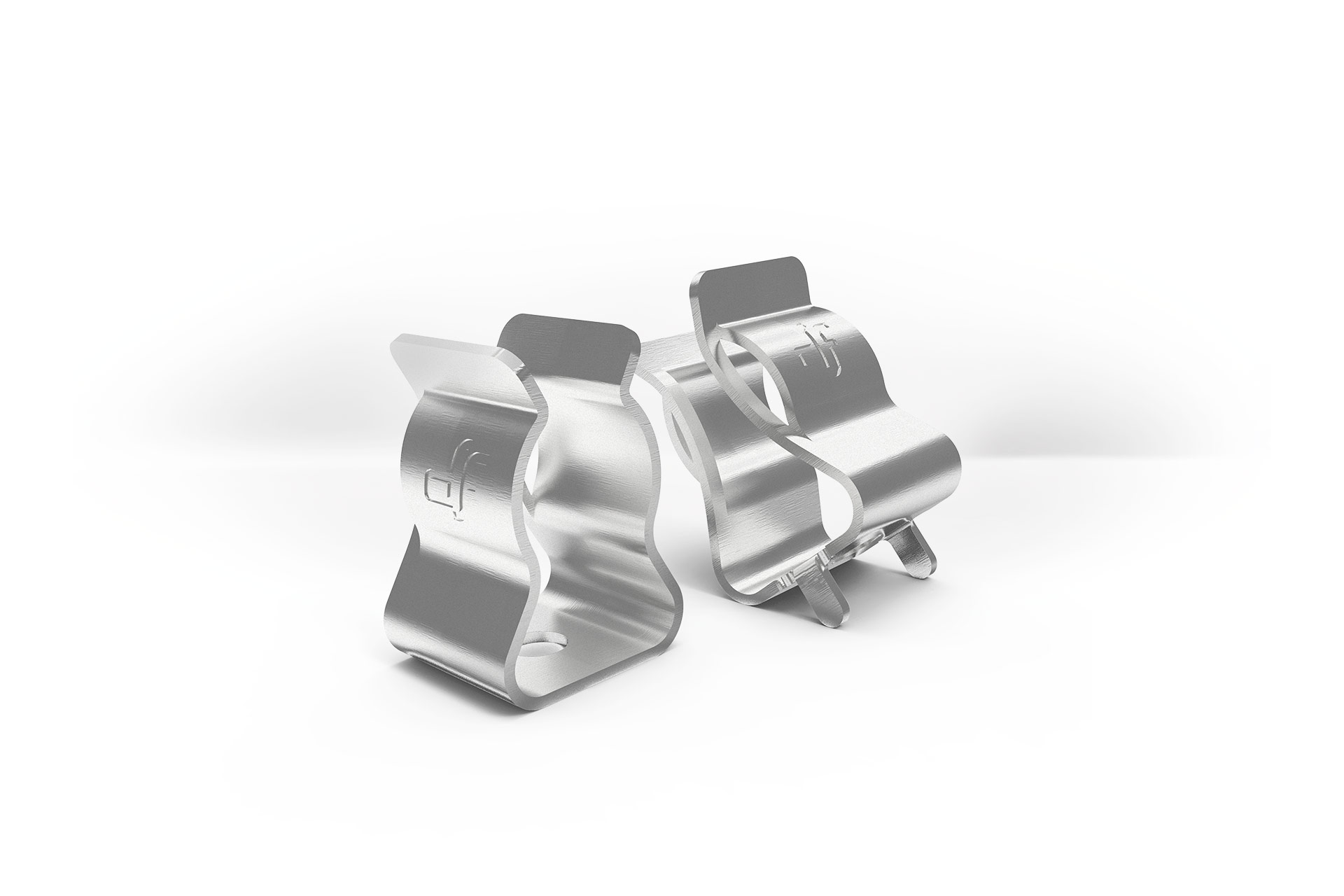

Clip contact for Ø10 fuse links
Screw fixation and PCB versions
Clip contact for Ø10 cylindrical fuse links. Screw fixation and PCB versions. Manufactured in tinned bronze. All the materials are according to the European Directive RoHS (Restriction of the use of certain hazardous substances in electrical material).
Range
| SIZE | Un (V AC/DC) | In (A) | FIXATION | REFERENCE |
|---|---|---|---|---|
| 10x38 | 10x85 | UP TO 1500 | 25A | SCREW | 482001 |
| PCB | 482002 |
Technical data
| Maximum nominal current | 25A |
| Operating voltage | Depends on proper installation conditions and the respect of the insulation distances according to IEC 60664-1 standard |
| Rated power dissipation | 4W |
Dimensions
SCREW Fixation
PCB Fixation
