22×58 gR Cylindrical fuse link for semiconductors
gR Cylindrical fuse links for semiconductors
Range
| SIZE | Un (V AC) | In (A) | REFERENCE | |
|---|---|---|---|---|
WITHOUT STRIKER |
WITH STRIKER |
|||
| 22x58 | 690V | 20 | 492033  |
492133 |
| 25 | 492034 |
492134 |
||
| 32 | 492035 |
492135 |
||
| 40 | 492036 |
492136 |
||
| 50 | 492037 |
492137 |
||
| 63 | 492038 |
492138 |
||
| 80 | 492039 |
492139 |
||
| 100 | 492040 |
492140 |
||
Technical data
| Rated voltage | 690V AC (UL/IEC) 440V DC (L/R=10ms)(IEC) |
| Rated currents | 20A...100A |
| Rated breaking capacity | 200kA @690V AC 30kA @440V DC |
| Operating class | gR |
| Storage temperature | -40°C ... 90°C |
| Operating temperature * | -40°C ... 80°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-4
UL248-1
UL248-13
RoHS Compliant
Dimensions
Weight 50gr
Certifications
t-I characteristics

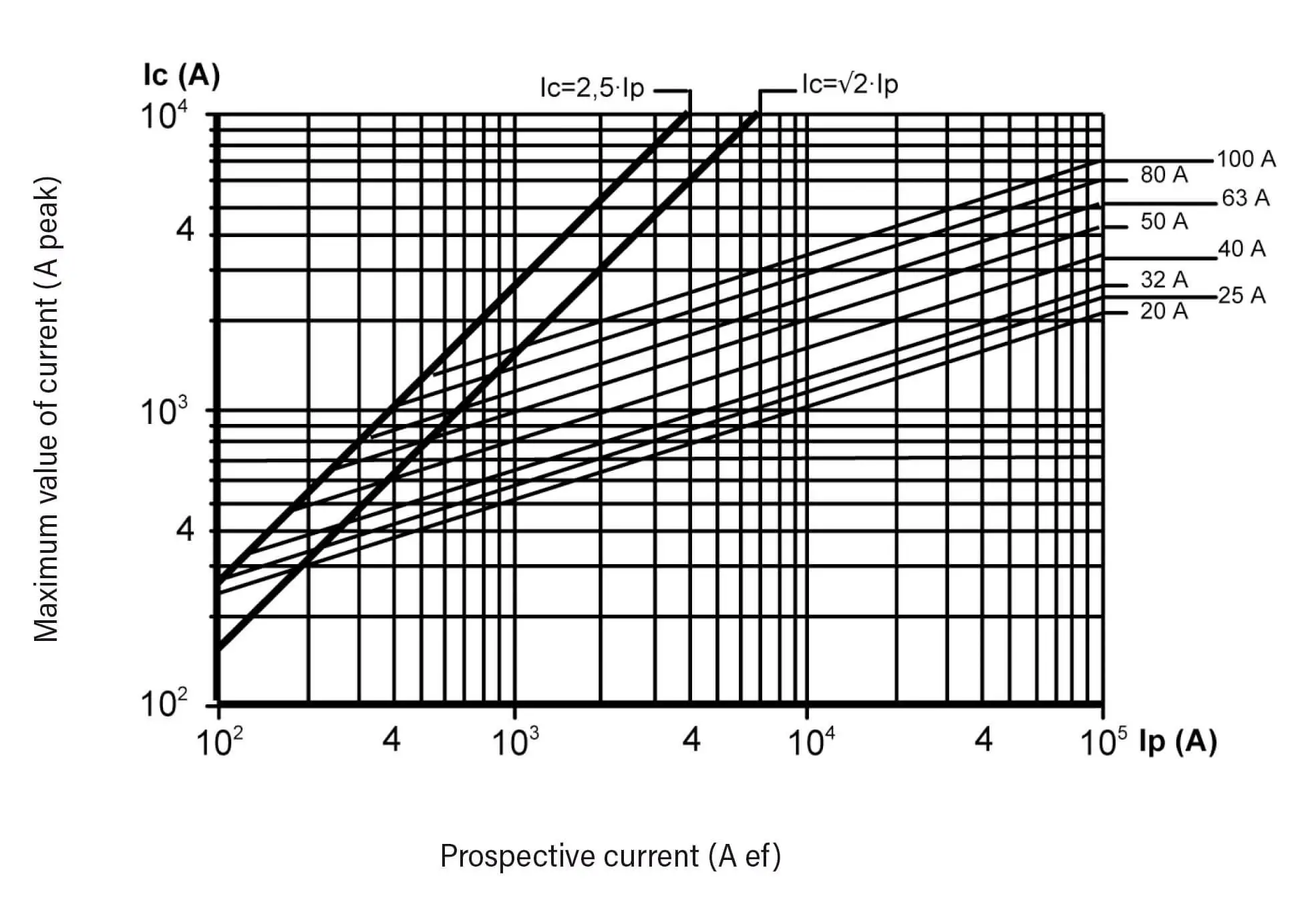

Cut-off characteristics
Power dissipation
| RATED CURRENT (A) |
REFERENCE * | POWER DISSIPATION In (W) |
POWER DISSIPATION 0,8·In (W) |
PREARCING I2t (A2s) |
I2t 690V (A2s) |
|---|---|---|---|---|---|
| 20 | 492033 | 6 | 3,23 | 24 | 154 |
| 25 | 492034 | 6,65 | 3,66 | 43 | 274 |
| 32 | 492035 | 9,21 | 4,86 | 97 | 616 |
| 40 | 492036 | 8,24 | 4,5 | 180 | 899 |
| 50 | 492037 | 11,85 | 6,26 | 273 | 1362 |
| 63 | 492038 | 13,8 | 7,35 | 516 | 2575 |
| 80 | 492039 | 14 | 8,4 | 1092 | 5448 |
| 100 | 492040 | 17,7 | 9,4 | 2065 | 10300 |
| * Same data for STRIKER range. | |||||
Compatible
 |
 |
|
| PMX 22x58 fuse holder | BAC 22x58 Open fuse base | |
| U | 690V AC 750V DC |
690V AC |
| In | 50A | 50A |
Other sizes
 |
 |
|
 |
 |
|
|---|---|---|
| U | 690V AC | 690V AC |
| IN | 1A...32A | 4A...50A |
| Breaking capacity | 200kA 30kA @440V DC |
200kA 30kA @440V DC |
| Certifications | |
|
