Range
| SIZE | Un (V AC) | In (A) | REFERENCE |
|---|---|---|---|

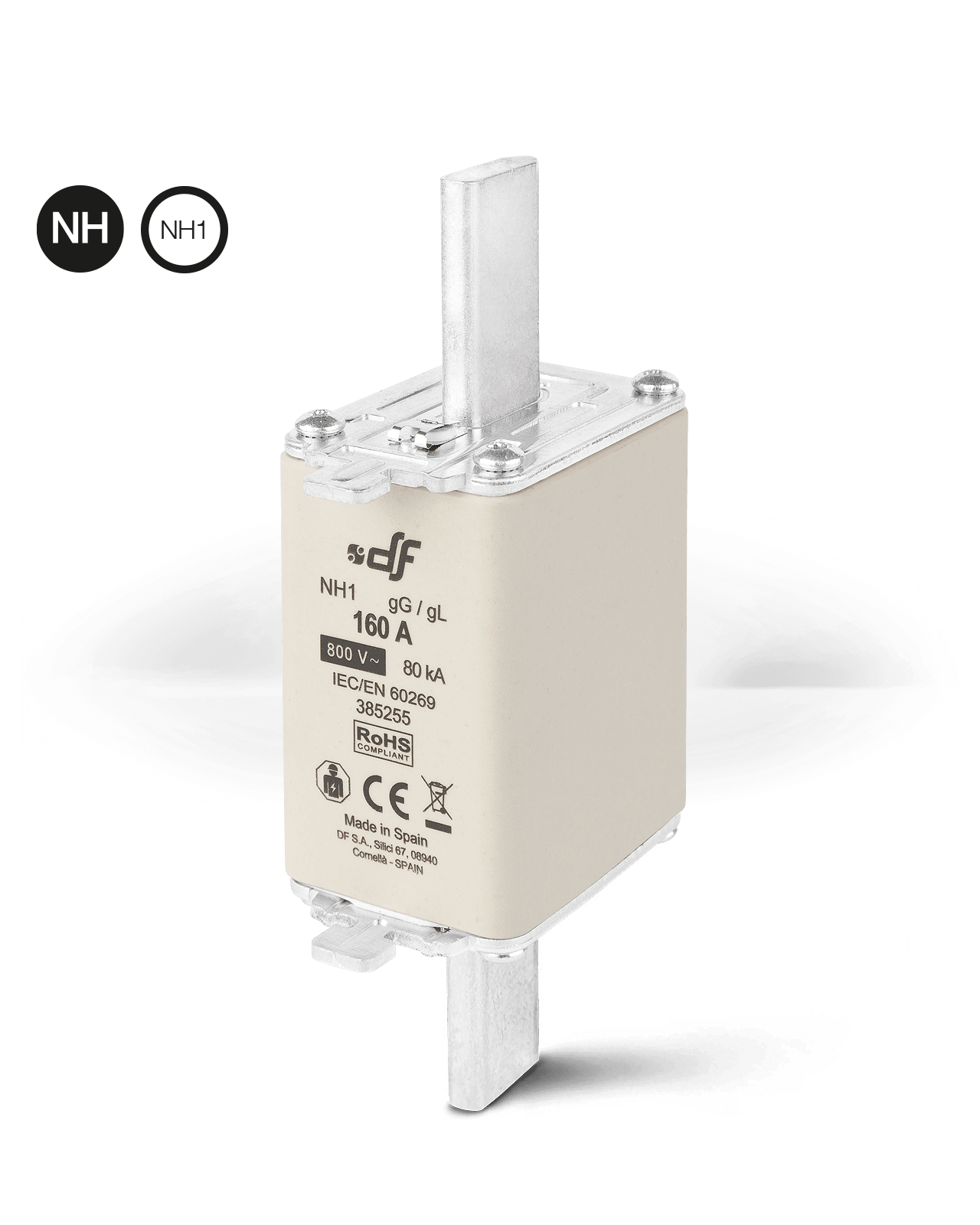

| NH1 | 800V | 80 | 385240 |
| 100 | 385245 | ||
| 125 | 385250 | ||
| 160 | 385255 | ||
| 200 | 385260 |
Technical data
| Rated voltage | 800V AC +10% |
| Rated currents | 80A...200A |
| Rated breaking capacity | 80 kA |
| Operating class | gG |
| Rated frequency | 42Hz...62Hz |
| Storage temperature | -40°C ... 90°C |
| Operating temperature * | -40°C ... 80°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
RoHS Compliant
Dimensions
| A | B | C | D | E | F | G | H | I | J | K | L |
| 68 | 62 | 71,5 | 135 | 20 | 10 | 9,5 | 6 | 39 | 40 | 52 | 64 |
Weight 380gr
t-I characteristics
Cut-off characteristics
Power dissipation
| RATED CURRENT (A) |
REFERENCE | POWER DISSIPATION (W) |
PREARCING I2t (A2s) |
OPERATING I2t (A2s 800V ~) |
|---|---|---|---|---|
| 80 | 385240 | 10,0 | 16550 | 33855 |
| 100 | 385245 | 12,0 | 32430 | 66355 |
| 125 | 385250 | 14,0 | 59730 | 122215 |
| 160 | 385255 | 18,0 | 95300 | 195000 |
Compatible
 |
|
| NH1 ST 800V AC fuse base | |
| U | 690V 800V |
| In | 250 A |
Other sizes
 |
 |
|
 |
 |
|
|---|---|---|
| U | 800V AC | 800V AC |
| IN | 25A...63A | 200A...400A |
| Breaking capacity | 80kA | 80kA |
