Range
| SIZE | Un (V AC) | In (A) | REFERENCE |
| NH000 | 690V | 16 | 365020 |
| 20 | 365025 | ||
| 25 | 365030 | ||
| 32 | 365035 | ||
| 40 | 365045 | ||
| 50 | 365050 | ||
| 63 | 365055 | ||
| 80 | 365060 | ||
| 100 | 365065 | ||
| 125 | 365070 | ||
| 160 | 365075 | ||
| 200 | 365080 | ||
| 250 | 365085 |
Technical data
| Rated voltage | 690V AC 440V DC (L/R=10ms) |
| Rated currents | 16A...250A |
| Rated breaking capacity | 120kA @690V AC 30kA @440V DC |
| Operating class | aR |
| Rated frequency | 42...62Hz |
| Storage temperature | -40°C ... 80°C |
| Operating temperature * | -25°C ... 60°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-4
RoHS Compliant
Dimensions
| A | B | C | D | E | F | G | H | I | J | K | L |
| 49 | 45 | 52 | 78,5 | 15 | 10 | 9,5 | 6 | 21 | 35 | 40 | 53 |
Weight 120gr
t-I characteristics

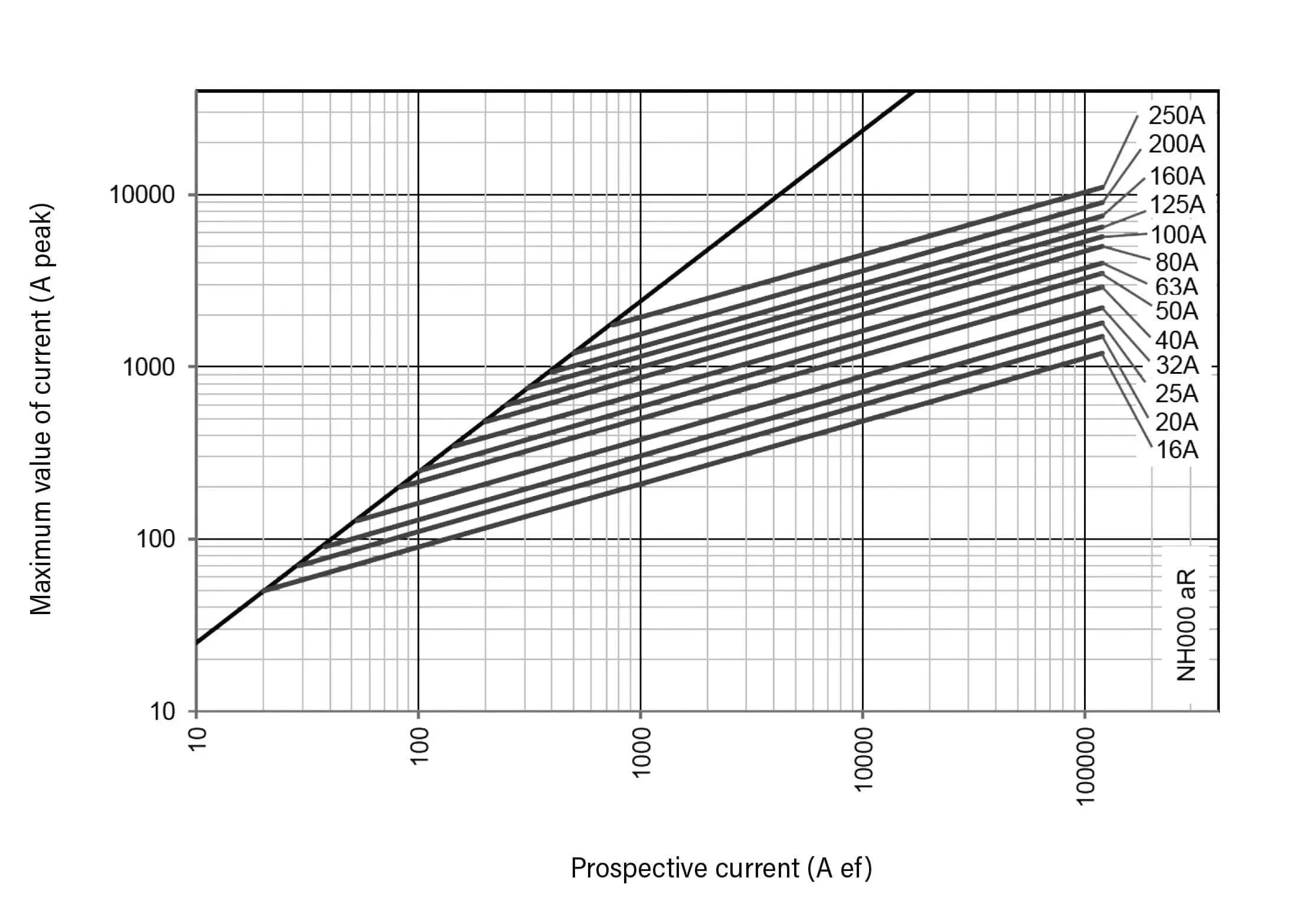

Cut-off characteristics
Power dissipation
| RATED CURRENT (A) |
REFERENCE | POWER DISSIPATION In (W) |
POWER DISSIPATION 0,8·In (W) |
PREARCING I2t (A2s) |
I2t 690V (A2s) |
|---|---|---|---|---|---|
| 16 | 365020 | 4,5 | 2,5 | 7 | 62 |
| 20 | 365025 | 5,2 | 2,9 | 15 | 121 |
| 25 | 365030 | 6,8 | 3,8 | 24 | 200 |
| 32 | 365035 | 8 | 4,5 | 33 | 213 |
| 40 | 365045 | 9,1 | 5,1 | 59 | 379 |
| 50 | 365050 | 9,5 | 5,3 | 157 | 1000 |
| 63 | 365055 | 12 | 6,9 | 290 | 2270 |
| 80 | 365060 | 15 | 8,4 | 550 | 4300 |
| 100 | 365065 | 17 | 9,5 | 720 | 5880 |
| 125 | 365070 | 20 | 11 | 1410 | 11540 |
| 160 | 365075 | 26 | 15 | 2340 | 19080 |
| 200 | 365080 | 36 | 20 | 3490 | 28500 |
| 250 | 365085 | 46 | 26 | 6500 | 53000 |
Compatible
 |
 |
 |
|
| NH00 ST 690V/800V fuse base | Microswitch for NH fuse links | NH ST 1000V AC/DC Fuse puller | |
| U | 690V 800V |
250V AC | 1000V DC |
| In | 160 A | 5 A | |
Other sizes
 |
 |
 |
|
 |
 |
 |
|
|---|---|---|---|
| U | 690V AC | 690V AC | 690V AC |
| IN | 40A...400A | 200A...700A | 500A...1000A |
| Breaking capacity | 120kA 30kA @550V DC |
120kA 30kA @550V DC |
120kA 30kA @550V DC |
