REF 492014 / 492015 / 492016 / 492017 / 492018 / 492019 / 492020 / 492021 / 492022 / 492023 / 492024 / 492116 / 492117 / 492118 / 492119 / 492120 / 492121 / 492122 / 492123 / 492124 / PMX 14×51 / BAC 14×51
SIZE | Un (V AC) | In (A) | REFERENCE | |
---|---|---|---|---|
WITHOUT STRIKER![]() |
WITH STRIKER![]() |
|||
14x51 | 690V | 4 | 492014 ![]() |
- |
6 | 492015 ![]() |
- | ||
8 | 492016 ![]() |
492116 ![]() |
||
10 | 492017 ![]() |
492117 ![]() |
||
12 | 492018 ![]() |
492118 ![]() |
||
16 | 492019 ![]() |
492119 ![]() |
||
20 | 492020 ![]() |
492120 ![]() |
||
25 | 492021 ![]() |
492121 ![]() |
||
32 | 492022 ![]() |
492122 ![]() |
||
40 | 492023 ![]() |
492123 ![]() |
||
50 | 492024 ![]() |
492124 ![]() |
Rated voltage | 690V AC 440V DC (L/R=10ms) |
Rated currents | 4A...50A |
Rated breaking capacity | 200kA @690V AC 30kA @440V DC |
Utilization category | gR |
Storage temperature | -40°C ... 90°C |
Operating temperature * | -40°C ... 80°C |
* For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. |
IEC/EN 60269-1
IEC/EN 60269-4
UL248-1
UL248-13
RoHS Compliant

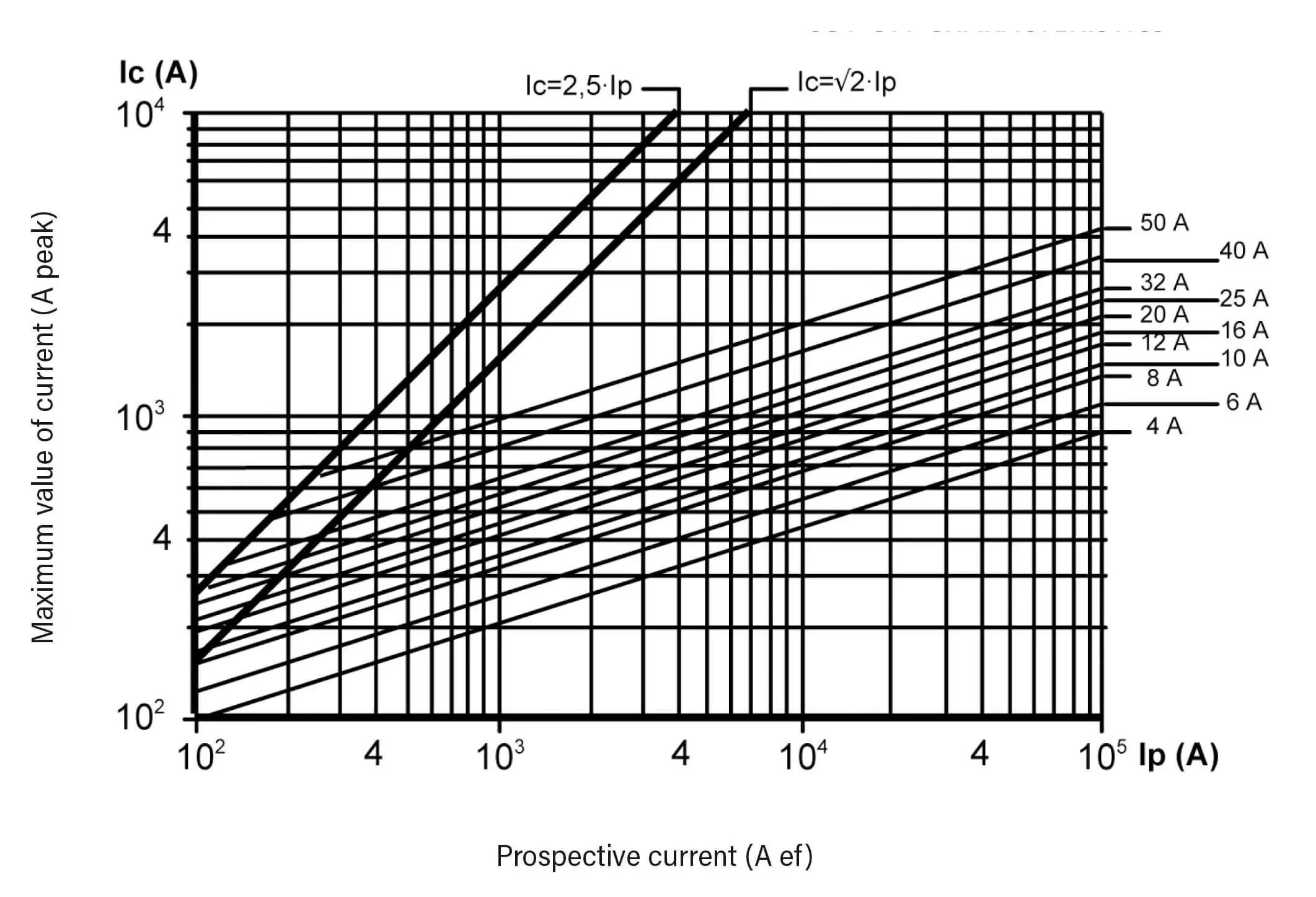

RATED CURRENT (A) |
REFERENCE * | POWER DISSIPATION In (W) |
POWER DISSIPATION 0,8·In (W) |
PREARCING I2t (A2s) |
I2t 690V (A2s) |
---|---|---|---|---|---|
4 | 492014 | 2,94 | 1,56 | 5,6 | 17 |
6 | 492015 | 4,2 | 2,25 | 48 | 16 |
8 | 492016 | 2 | 1,18 | 3,8 | 30 |
10 | 492017 | 2,52 | 1,41 | 5,9 | 47 |
12 | 492018 | 3,54 | 1,95 | 8,4 | 68 |
16 | 492019 | 4,83 | 2,67 | 15 | 120 |
20 | 492020 | 5,4 | 2,91 | 27 | 170 |
25 | 492021 | 6 | 3,38 | 53 | 333 |
32 | 492022 | 6,93 | 3,72 | 108 | 679 |
40 | 492023 | 7,52 | 4,13 | 211 | 1331 |
50 | 492024 | 9,8 | 5,36 | 350 | 2200 |
* Same data for STRIKER range. |
![]() |
![]() |
|
PMX 14x51 fuse holder | BAC 14×51 Open fuse base | |
U | 690V AC 750V DC |
690V AC |
In | 50A | 50A |
