NH00 gS fuse link for semiconductors 690V AC
gS NH fuse links for semiconductors 690V AC
Range
| SIZE | Un (V AC) | In (A) | REFERENCE |
| NH00 | 690V | 125 | 371070 |
| 160 | 371075 |
Technical data
| Rated voltage | 690V AC 440V DC (L/R=10ms) |
| Rated currents | 125A | 160A |
| Rated breaking capacity | 100kA @690V AC 30kA @440V DC |
| Operating class | gS |
| Rated frequency | 42...62Hz |
| Storage temperature | -40°C ... 80°C |
| Operating temperature * | -25°C ... 60°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-4
RoHS Compliant
Dimensions
| A | B | C | D | E | F | G | H | I | J | K | L |
| 49 | 44 | 52 | 78,5 | 15 | 10 | 9,5 | 6 | 29 | 35 | 47 | 59 |
Weight 180gr
t-I characteristics

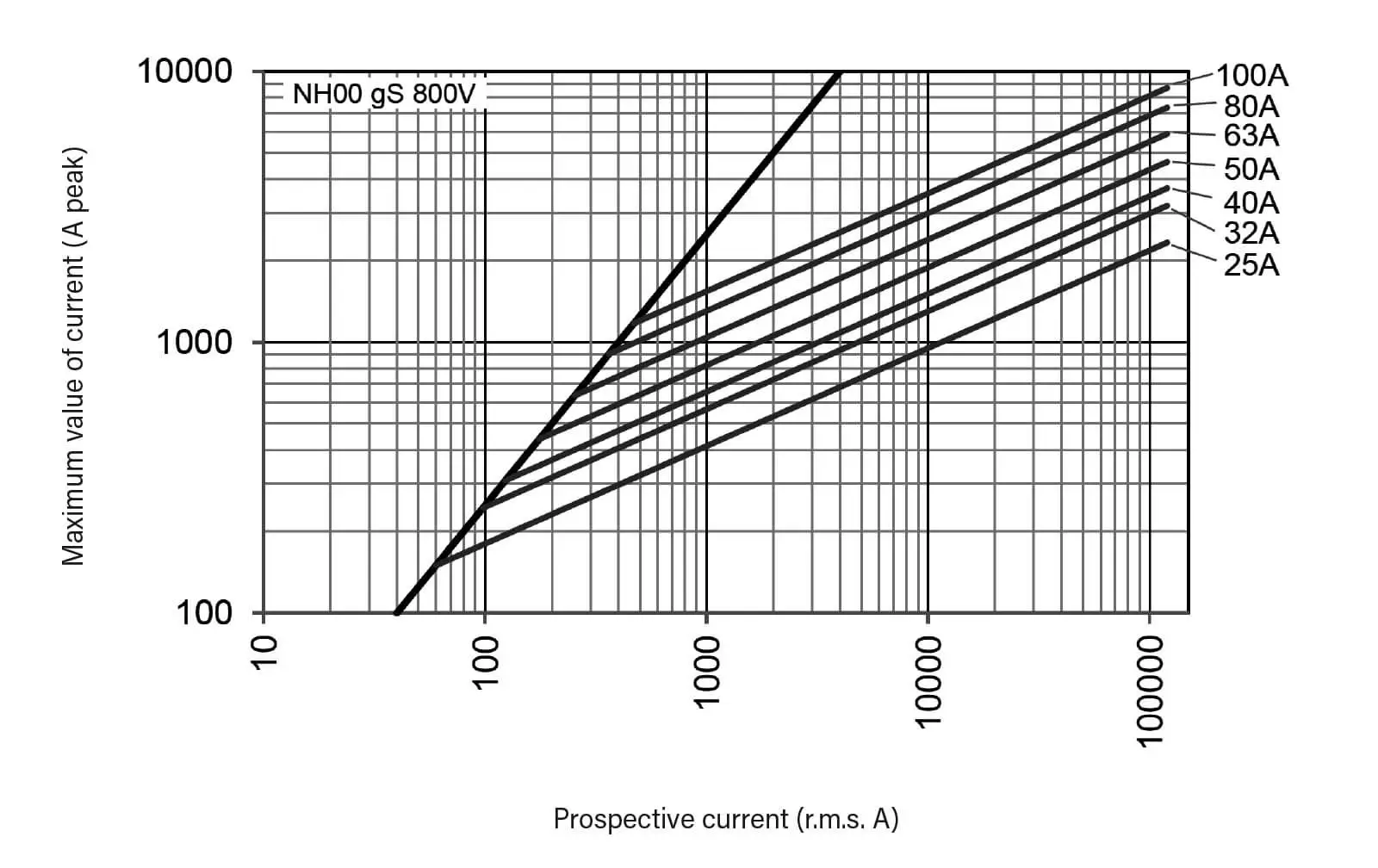

Cut-off characteristics
Power dissipation
| RATED CURRENT (A) |
REFERENCE | POWER DISSIPATION In (W) |
POWER DISSIPATION 0,8·In (W) |
PREARCING I2t (A2s) |
I2t 690V (A2s) |
|---|---|---|---|---|---|
| 125 | 371070 | 14,7 | 8,3 | 3380 | 6400 |
| 160 | 371075 | 18,2 | 10,5 | 6400 | 21840 |
Compatible
 |
 |
 |
|
| NH00 ST 690V/800V fuse base | Microswitch for NH fuse links | NH ST 1000V AC/DC Fuse puller | |
| U | 690V 800V |
250V AC | 1000V DC |
| In | 160 A | 5 A | |
Other sizes
 |
 |
 |
 |
|
 |
 |
 |
 |
|
|---|---|---|---|---|
| U | 690V AC | 690V AC | 690V AC | 690V AC |
| IN | 20A...100A | 125A...280A | 250A...450A | 355A...630A |
| Breaking capacity | 100kA 30kA @440V DC |
100kA 30kA @550V DC |
100kA 30kA @550V DC |
100kA 30kA @550V DC |
