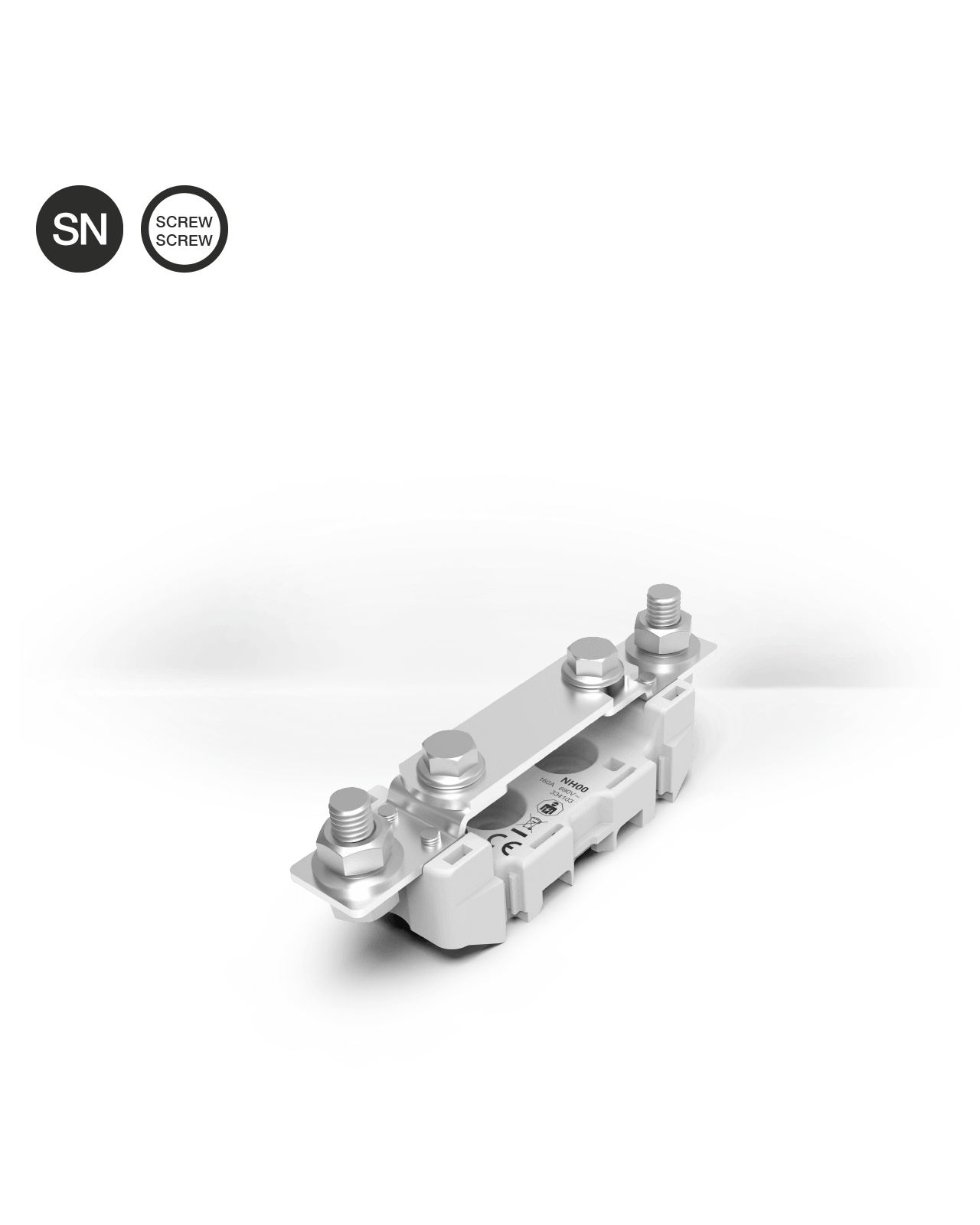

Range
| CONNECTION | SIZE | In (A) | REFERENCE | |
|---|---|---|---|---|
| SCREW-SCREW |  |
NH00 | 160A | 334103 |
 |
NH0 | 250A | 334160 | |
 |
NH0 LONGITUDINAL |
250A | 334163 | |
 |
NH1 | NH2 | NH3 | 630A | 334251 |
Technical data
| Contacts | Silver plated copper |
| Body | Thermoplastic, high resistance to temperature Flammability: (UL94) V0 Glow wire test: (IEC-60695) 960ºC |
| Rated current | 160A NH00 250A NH0 630A NH1 | NH2 | NH3 |
| Rated voltage | 690V |
| Ambient temperature of service | -20°C ... 70°C |
| Storage temperature | -40°C ... 80°C |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
Dimensions
| A | B | C | D | E | F | G | H | I | J | K | L | |
| NH00 | 120,5 | 7,5 | 15 | 100 | 86 | M8 | 20 | 0 | 37 | 23 | 2 | 43 |
| NH0 | 170 | 7,5 | 15 | 150 | 122 | M8 | 20 | 0 | 47 | 29 | 2 | 49 |
| NH0 LONGITUDINAL |
170 | 7,5 | 15 | 150 | 122 | M8 | 20 | 0 | 47 | 29 | 2 | 49 |
| NH1 | NH2 | NH3 | 200 | 10,5 | 20 | 175 | 146 | M12 | 25 | 30 | 48 | 35 | 2 | 60 |
Weight
| NH00 | 130gr |
| NH0 | 190gr |
| NH0 LONGITUDINAL |
200gr |
| NH1 | NH2 | NH3 | 350gr |
Other versions
 |
 |
|
 |
 |
|
|---|---|---|
  |
|
|
| U | 690V | 690V |
| IN | 160A NH00 250A NH0 |
160A NH00 250A NH0 |
