Range

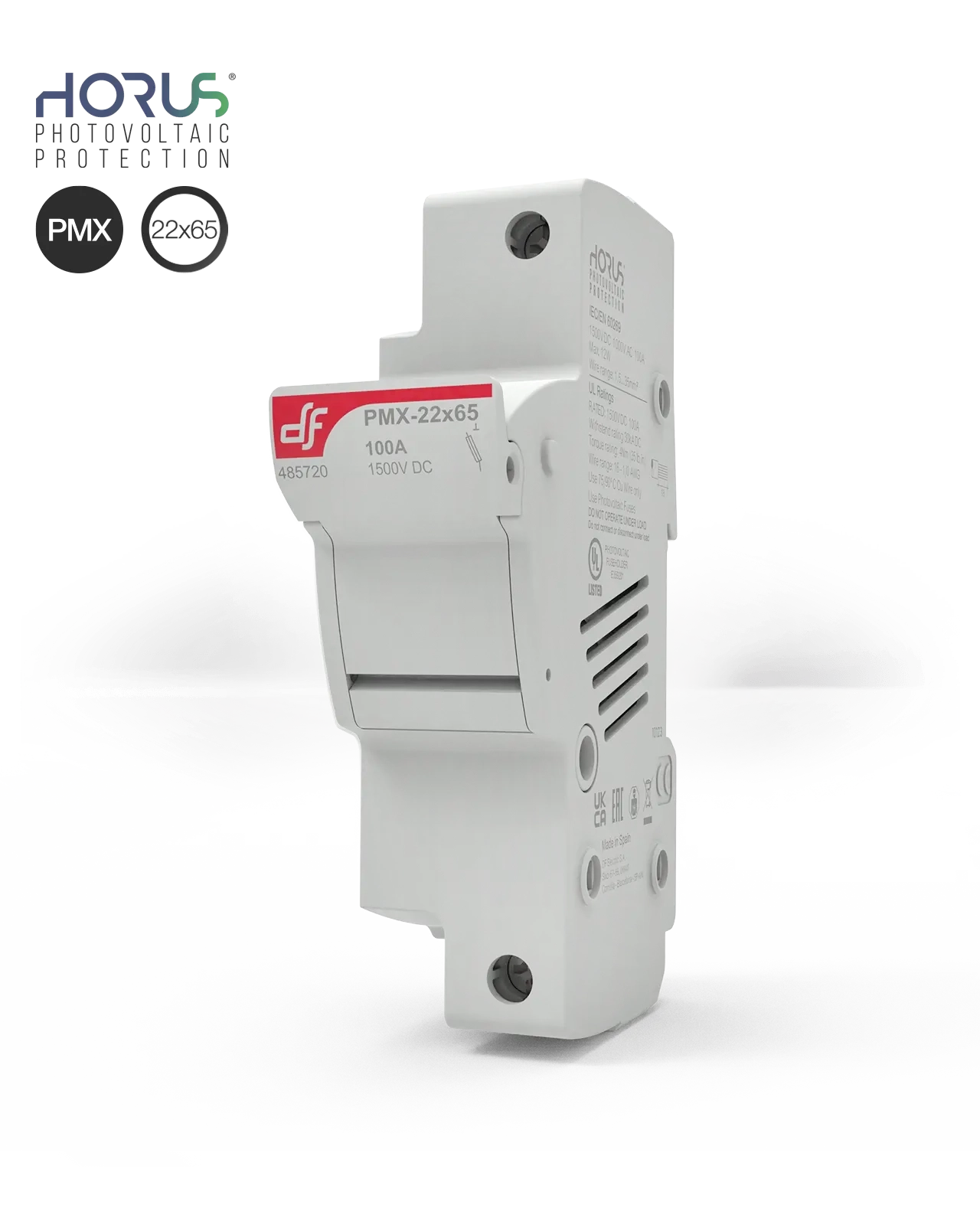

| SIZE | Un (V DC) | In (A) | INDICATOR | POLES | REFERENCE |
|---|---|---|---|---|---|
| 22x65 | 1500V | 100A | 1P | 485720 |
Technical data
| Rated current | 100A |
| Rated voltage | 1000V AC | 1500V DC |
| Maximum power dissipation | 12W |
| Power dissipation per pole | 50% In 1,48W 80% In 1,82W 100% In 2,81W |
| Pollution degree | 3 |
| Protection index * | IP20 |
| Rated impulse withstand voltage | 8kV U imp |
| Ambient temperature of service | -20°C ... 70°C |
| Storage temperature | -40°C ... 80°C |
| * For wires of section ≤ 16mm2 is necessary to use the accessory indicated to guarantee IP20 in clamps zone. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
UL4248-1 Fuse holders
UL4248-19 Photovoltaic fuse holders
UL486E Wiring terminals
Dimensions
Weight 148gr
Certifications
Accessories
Multipolar assembly
Standard system by DF Electric: 3 clips and 1 pin for each union between poles.
| REFERENCE | DESCRIPTION |
| 480005 | PMF/PMX Pins for multipole assembly |
| 485356 | PMX14/22 Handle ties for multipole assembly |
Screw fixation accessory
First mount the accessory with screws, then mount the fuse holder (there are available different accessories depending the number of the fuse holder)
Special IP20 protection
The accessory must be positioned in the wire entries, if it’s necessary to achieve the IP20 degree of protection with thin wires. Manual assembly.
| REFERENCE | DESCRIPTION |
| 485366 | Special IP20 protection accessory |
Screws’ protection accessory
Protection accessory to avoid the screws manipulation and improve the protection degree. Manual assembly.
| REFERENCE | DESCRIPTION |
| 485371 | PMX22 Accessory screw protection |
Special accessory screw connection
| REFERENCE | DESCRIPTION |
| 485367 | PMX22 Special accessory screw connection |
Compatible
 |
|
| 22x65 Cylindrical gPV fuse link | |
| NEW | |
| U | 1500V DC |
| In | 40A...60A |
| Breaking capacity | 30kA |
Other sizes
 |
 |
|
 |
 |
|
|---|---|---|
| U | 1000V DC | 1100V DC |
| IN | 32A | 50A |
| Certifications |  |
|
