Industrial Cylindrical fuse links & fuse holders
CYLINDRICAL range includes fuse links, fuse holders and fuse bases designed for reliable protection in industrial electrical installations. The family brings together gG cylindrical fuse links for general-purpose protection, aM cylindrical fuse links for motor circuits, neutral links, and a wide selection of fuse holder solutions including PME, PMX, PMC Compact, PMX CC and BAC open fuse bases. Designed for panel builders, OEMs and industrial installations, these solutions cover different mounting formats, space requirements and protection needs. From compact DIN-rail fuse holders to modular multipole assemblies and open fuse bases for applications with higher heat dissipation, the CYLINDRICAL family helps engineers select the right combination of fuse link and holder for each circuit.
gG cylindrical fuse links are designed for general-purpose protection in industrial electrical installations. They provide reliable protection against overloads and short circuits in cables, lines and equipment, making them a dependable solution for switchboards, control panels and distribution systems.
aM cylindrical fuse links are designed for short-circuit protection in motors, transformers and other circuits with high inrush currents. Their current-limiting performance helps protect associated equipment and makes them a reliable solution for motor applications used together with overload protection devices.

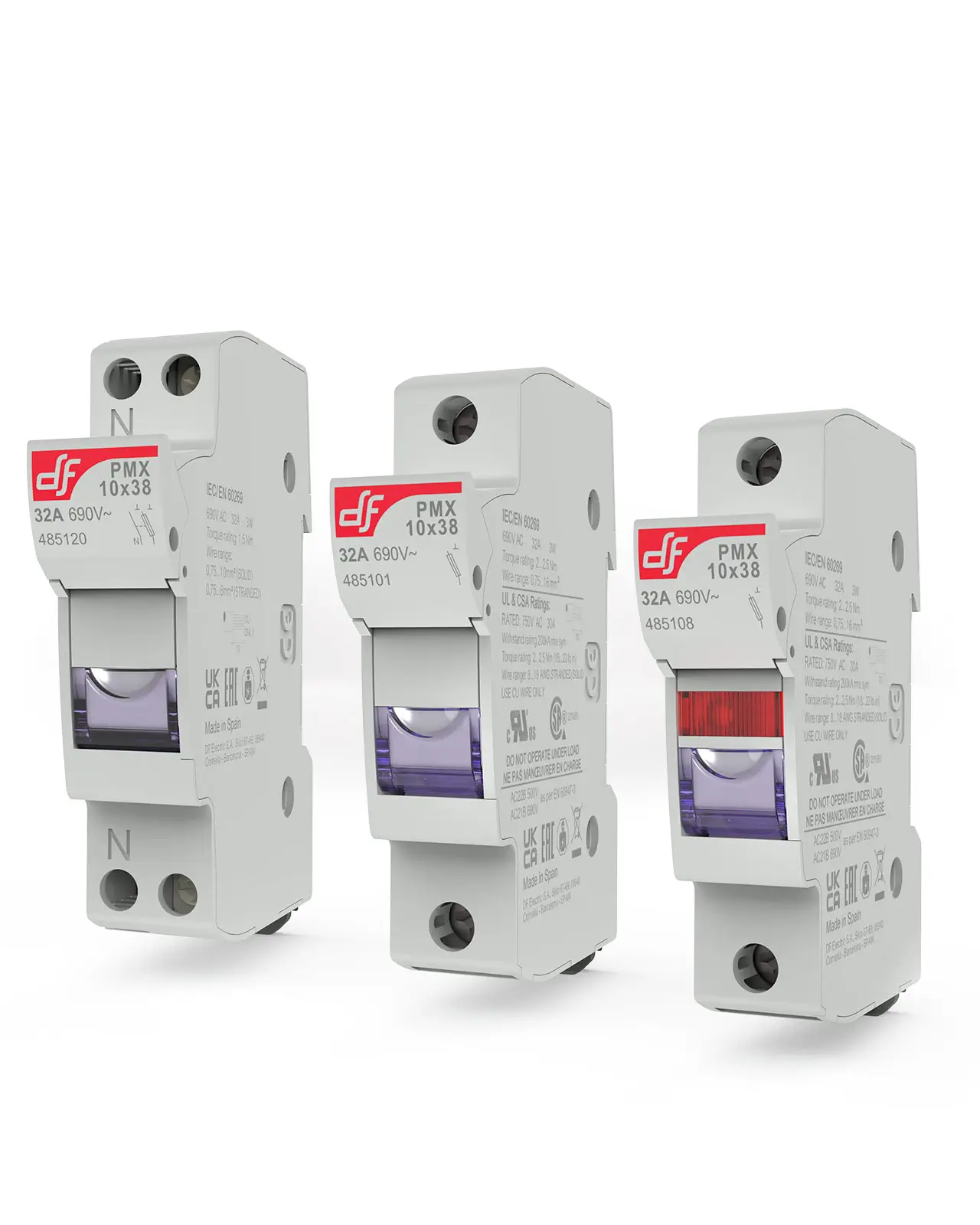

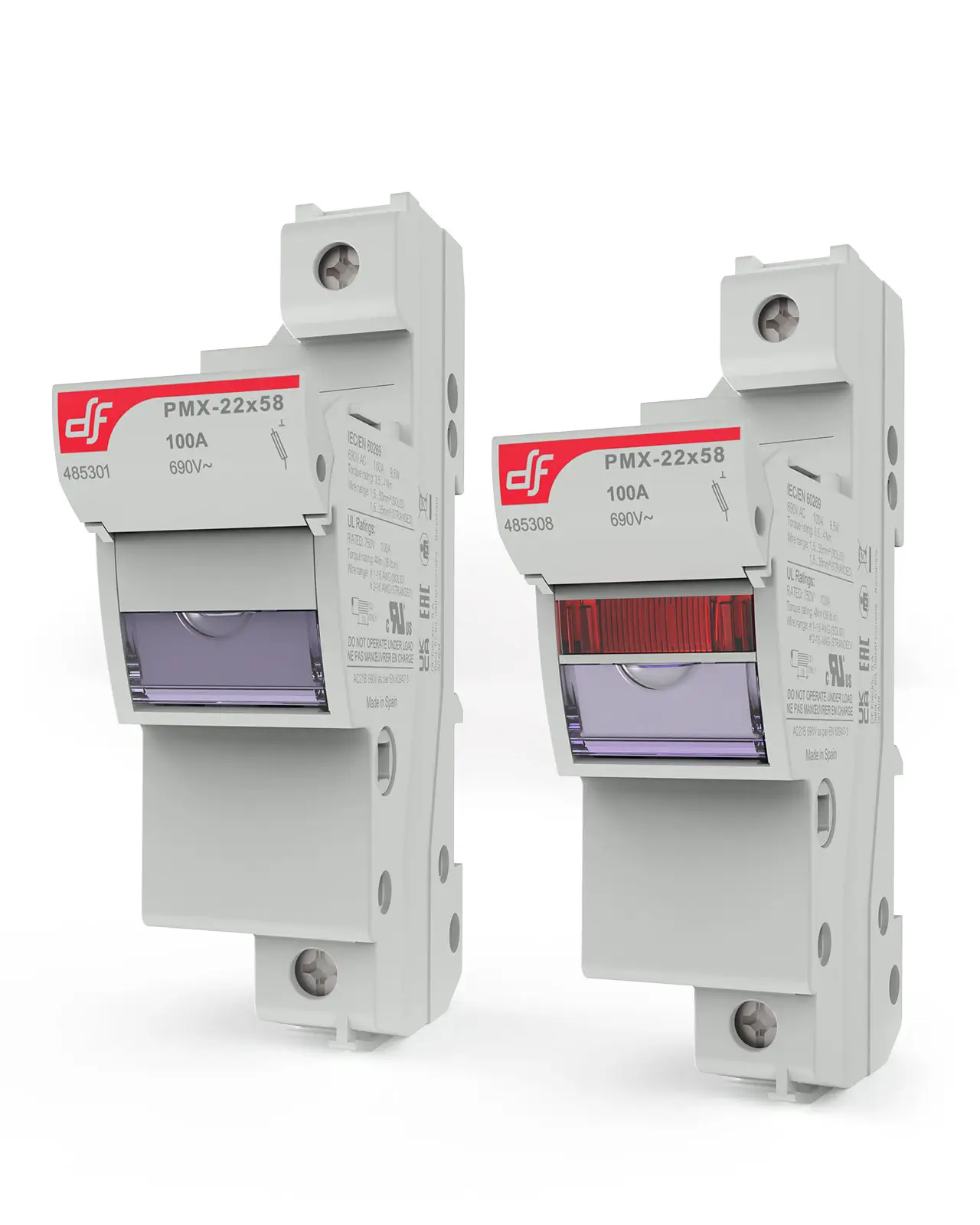

PMX fuse holders are designed to provide flexible and modular installation for cylindrical fuse links in industrial panels. Available in several sizes and versions, they support efficient assembly, easy identification and practical integration in electrical systems requiring reliable protection and adaptable mounting solutions.
PMC Compact fuse holders are designed for cylindrical fuse links in installations where space saving is especially important. Their compact format and DIN rail mounting make them a practical solution for electrical panels that require reliable protection together with efficient use of available space.
PMX CC fuse holders are designed for cylindrical Class CC fuse links in compact industrial installations. Their configuration supports reduced dimensions, optimized spacing and efficient heat dissipation, providing a dedicated solution for panels that require reliable protection in a smaller mounting format.
BAC open fuse bases are designed for cylindrical fuse links, mainly used in semiconductor fuse applications where open mounting is preferred due to higher heat dissipation requirements. Their construction ensures reliable installation and effective heat dissipation, especially in demanding conditions with high power losses and increased temperatures, making them a practical solution for accessible, robust, and dependable electrical protection.
Need to know
What products are included in the CYLINDRICAL family?
The CYLINDRICAL family includes gG and aM fuse links, neutral links, PME fuse holders, PMX fuse holders, PMC Compact fuse holders, PMX CC fuse holders, BAC open fuse bases and clip contacts for Ø10 fuse links.
What is the difference between gG and aM fuse links?
gG fuse links are designed for general-purpose circuit protection, while aM fuse links are intended for short-circuit protection in motors, transformers and circuits with high inrush currents.
How do I choose the right cylindrical fuse link?
Choosing the right cylindrical fuse link depends on voltage rating, current rating, breaking capacity and application type. gG fuse links are used for general protection, while aM fuse links are suitable for motor circuits where inrush currents occur. Correct selection ensures reliable protection against overloads and short circuits, preventing damage to equipment and avoiding unnecessary fuse operation in demanding industrial applications.
What are PMX fuse holders designed for?
PMX fuse holders are designed for modular installation of cylindrical fuse links in electrical panels, offering several sizes, accessory options and practical assembly features that support flexible integration in a wide range of industrial applications.
When should PMC Compact fuse holders be used?
PMC Compact fuse holders are recommended when reduced dimensions are important and the installation requires a compact, practical and reliable solution for cylindrical fuse links mounted on DIN rail in industrial electrical panels.
What size of cylindrical fuse holder should I choose?
The size of the cylindrical fuse holder should match the fuse link dimensions and the electrical requirements of the installation. Common sizes such as 10x38 mm are used for general protection, while larger sizes like 14x51 mm or 22x58 mm are suitable for higher power applications. Selecting the correct size ensures proper fitting, safe operation and adequate breaking capacity, avoiding overheating or installation issues in electrical panels.
What are PMX CC fuse holders used for?
PMX CC fuse holders are designed for cylindrical Class CC fuse links and provide a compact, dedicated solution for installations that require optimized spacing, reliable mounting and efficient heat dissipation in reduced panel layouts.
What are BAC open fuse bases used for?
BAC open fuse bases are used for cylindrical fuse links in applications where open mounting is preferred, especially in assemblies where accessibility, robustness and effective heat dissipation are important for reliable electrical protection.
What factors affect the lifespan of a cylindrical fuse holder?
The lifespan of a cylindrical fuse holder depends on operating temperature, load conditions and installation quality. High temperatures, poor ventilation or incorrect installation can reduce performance over time, while proper selection and mounting improve durability and system reliability.
