NH00 gS NH fuse link for semiconductors 800V
gS NH 800V fuse links for semiconductors
NEW
Range
| SIZE | Un (V AC) | In (A) | REFERENCE |
| NH00 | 800V | 25 | 369030 |
| 32 | 369035 | ||
| 40 | 369045 | ||
| 50 | 369050 | ||
| 63 | 369055 | ||
| 80 | 369060 | ||
| 100 | 369065 |
Technical data
| Rated voltage | 800V AC |
| Rated currents | 25A...100A |
| Rated breaking capacity | 120kA |
| Operating class | gS |
| Rated frequency | 42Hz...62Hz |
| Storage temperature | -40°C ... 90°C |
| Operating temperature * | -40°C ... 80°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-4
RoHS Compliant
Dimensions
| A | B | C | D | E | F | G | H | I | J | K | L |
| 49 | 44 | 52 | 78,5 | 15 | 10 | 9,5 | 6 | 29 | 35 | 47 | 59 |
Weight 180gr
t-I characteristics

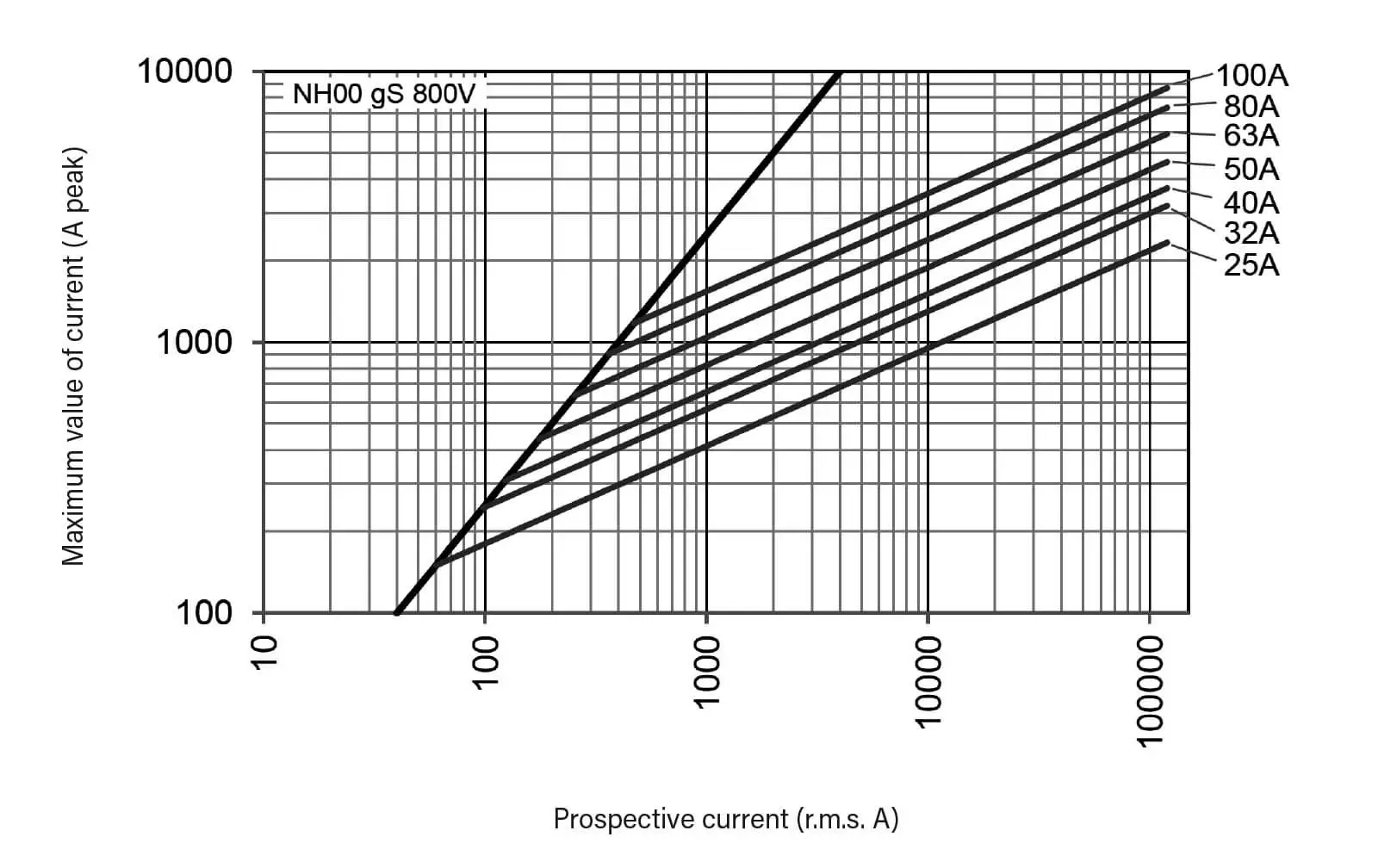

Cut-off characteristics
Power dissipation
| RATED CURRENT (A) |
REFERENCE | POWER DISSIPATION In (W) |
POWER DISSIPATION 0,8·In (W) |
PREARCING I2t (A2s) |
I2t 800V (A2s) |
|---|---|---|---|---|---|
| 25 | 369030 | 4,1 | 2,4 | 60 | 300 |
| 32 | 369035 | 4,6 | 2,6 | 150 | 800 |
| 40 | 369045 | 5,6 | 3,3 | 200 | 1300 |
| 50 | 369050 | 6,1 | 3,7 | 500 | 2500 |
| 63 | 369055 | 6,8 | 4,2 | 900 | 5000 |
| 80 | 369060 | 8,3 | 4,8 | 1800 | 9800 |
| 100 | 369065 | 10,9 | 6,8 | 3100 | 16200 |
Compatible
 |
 |
 |
|
| NH00 ST 690V/800V fuse base | Microswitch for NH fuse links | NH ST 1000V AC/DC Fuse puller | |
| U | 690V 800V |
250V AC | 1000V DC |
| In | 160 A | 5 A | |
Other sizes
 |
 |
|
 |
 |
|
|---|---|---|
| U | 800V AC | 800V AC |
| IN | 100A...200A | 250A...400A |
| Breaking capacity | 120kA | 120kA |
