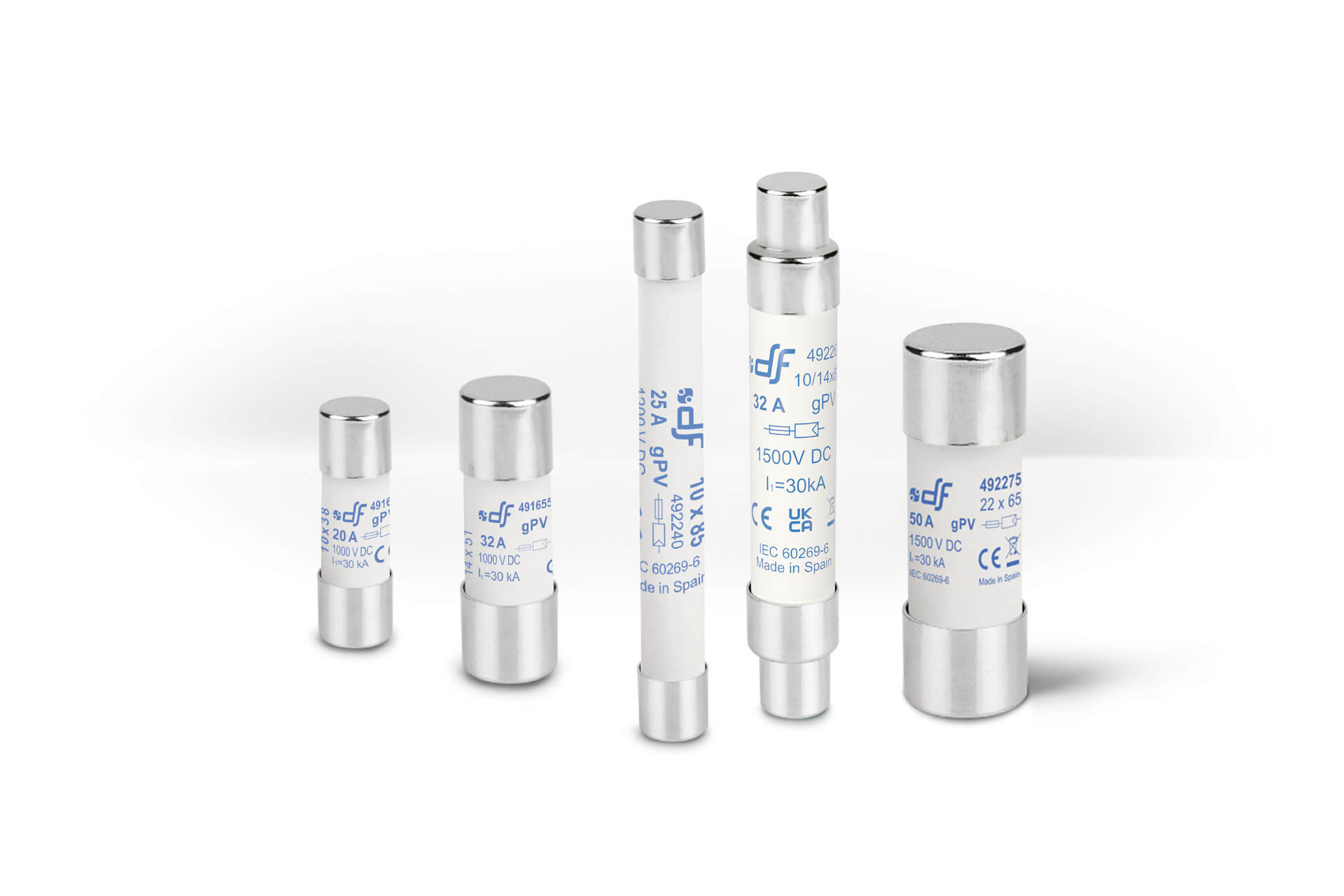

gPV 10×38 and 14×51 cylindrical fuse links have been developed to offer a compact, safety and economic protection of photovoltaic modules (array protection) with voltages up to 1.000/1.100V DC. gPV 10×85, 10/14×85 and 22×65 cylindrical fuse links offer a compact, safety and economic protection of photovoltaic modules (array protection) with voltages up to 1.200/1.500 VDC. They provide protection against overloads as well as short-circuit (gPV class according to the requirements of IEC60269-6 and UL248-19 Standards).
Made with ceramic tube with high withstand to internal pressure and thermal shock, that allows a high breaking capacity in a reduced physical space. Contacts are made in silver plated copper and melting elements are made in pure silver in order to avoid the aging and thus keep unalterable the electric characteristics.
For these fuse links we recommend the utilization of PMX fuse holders.
Download technical data
SIZE | Un (V DC) | In (A) | REFERENCE |
---|---|---|---|
10x38 | 1000V | 1 | 491601 |
2 | 491602 |
||
3 | 491604 |
||
4 | 491605 |
||
5 | 491606 |
||
6 | 491610 |
||
8 | 491615 |
||
10 | 491620 |
||
12 | 491625 |
||
15 | 491629 |
||
16 | 491630 |
||
20 | 491635 |
||
14x51 | 1100V | 15 | 491647 |
20 | 491648 | ||
1000V | 25 | 491650 | |
32 | 491655 | ||
10x85 | 1500 V | 2 | 492202 |
4 | 492205 |
||
6 | 492210 |
||
8 | 492215 |
||
10 | 492220 |
||
12 | 492225 |
||
15 | 492229 |
||
16 | 492230 |
||
1200V | 20 | 492235 | |
25 | 492240 | ||
10/14x85 | 1500V | 20 | 492250 |
25 | 492255 | ||
30 | 492260 | ||
32 | 492262 | ||
22x65 | 1500V | 40 | 492270 |
45 | 492272 | ||
50 | 492275 | ||
55 | 492278 | ||
60 | 492280 |
Utilization category | gPV |
Minimum interrupt rating | 1A 2...60A |
Non fusing current | 1,13·In |
Storage temperature | -40°C ... 90°C |
Operating temperature * | -40°C ... 80°C |
* For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. |
IEC/EN 60269-1 Fuse links – general requirements
IEC/EN 60269-6 Fuse links for solar photovoltaic systems
UL248-19 Photovoltaic fuse links
RoHS Compliant
