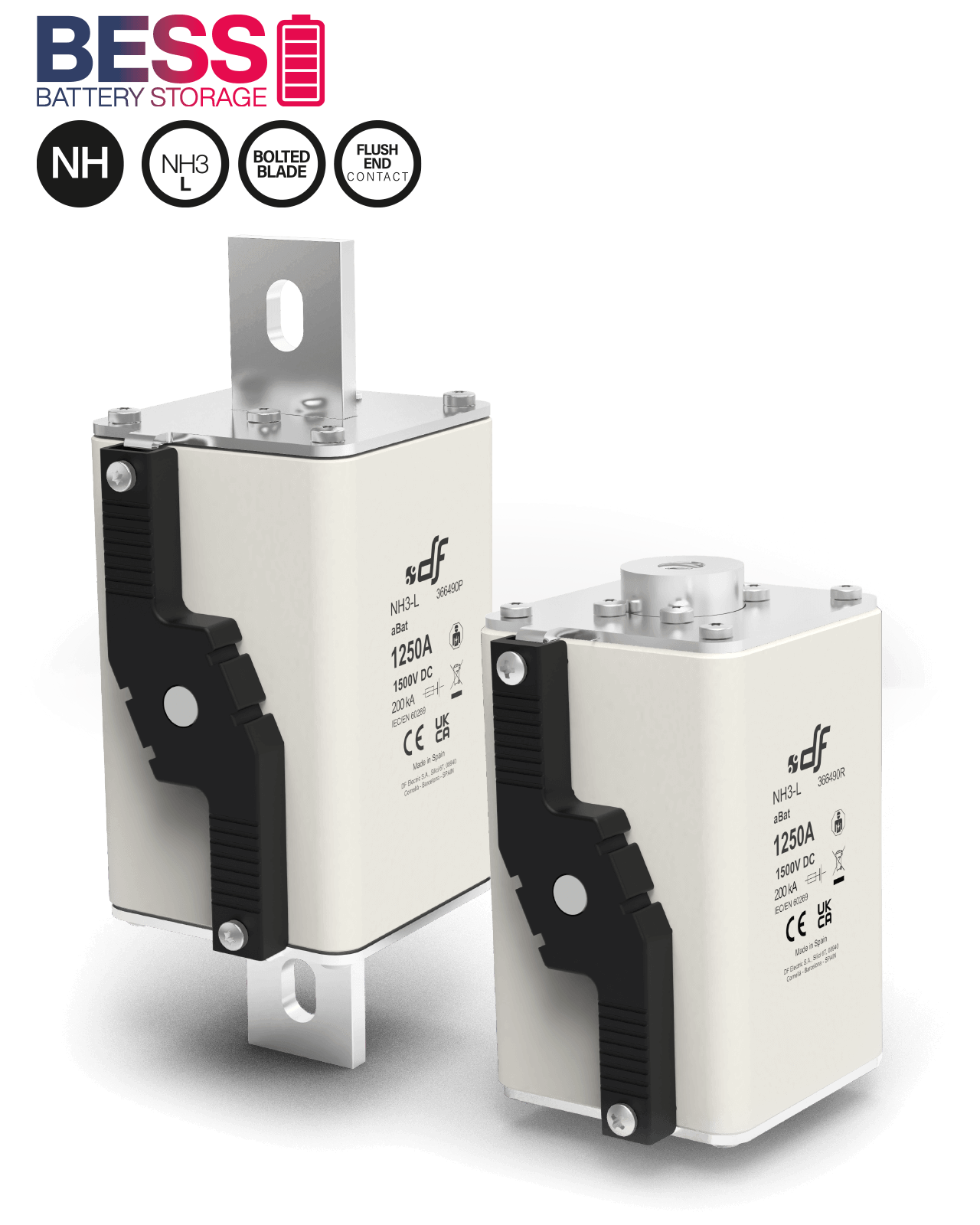

NH3 L aBat fuse link 1500V DC

NEW



Download technical data

REF 366463P / 368425P / 366467P / 366470P / 366472P / 366475P / 366480P / 366485P / 366487P / 366490P / 366463R / 368425R / 366467R / 366470R / 366472R / 366475R / 366480R / 366485R / 366487R / 366490R

Range

SIZE Un (V DC) In (A) REFERENCE
BOLTED BLADE FLUSH END CONTACT
NH3 L 1500V
L/R ≤ 3ms		 450 366463P 366463R
500 366465P 366465R
550 366467P 366467R
630 366470P 366470R
700 366472P 366472R
800 366475P 366475R
900 366480P 366480R
1000 366485P 366485R
1100 366487P 366487R
1250 366490P 366490R

Technical data

Rated voltage 1500V DC
L/R ≤ 3ms
Rated current 450A...1250A
Rated breaking capacity 200kA
Operating class aBat
Minimum breaking current 10·In
Max. altitude * 2000 m
Storage temperature -40°C ... 90°C
Operating temperature ** -40°C ... 80°C
* For altitudes higher than 2000 m it is necessary to apply a derating in maximum current (consult us).
** For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current.

Standards

IEC/EN 60269-1
IEC 60269-7
UL248-1
UL248-21
RoHS Compliant

Dimensions

Weight  2,20kg

Weight  2,18kg

t-I characteristics

Power dissipation

RATED CURRENT
(A)		 REFERENCE POWER DISSIPATION
BLADE CONTACT		 POWER DISSIPATION
FLUSH END CONTACT		 PREARCING I2t
(A2s)		 OPERATING I2t
(A2s)
450 366463P-R 130 120 79200 216380
500 366465P-R 150 142 107800 294520
550 366467P-R 160 153 140800 384680
630 366470P-R 205 198 163300 446140
700 366472P-R 240 230 220000 601070
800 366475P-R 255 240 316800 865540
900 366480P-R 280 256 431220 1178000
1000 366485P-R 310 270 563220 1538700
1100 366487P-R 325 285 712830 1947400
1250 366490P-R 340 295 1079790 2950000
