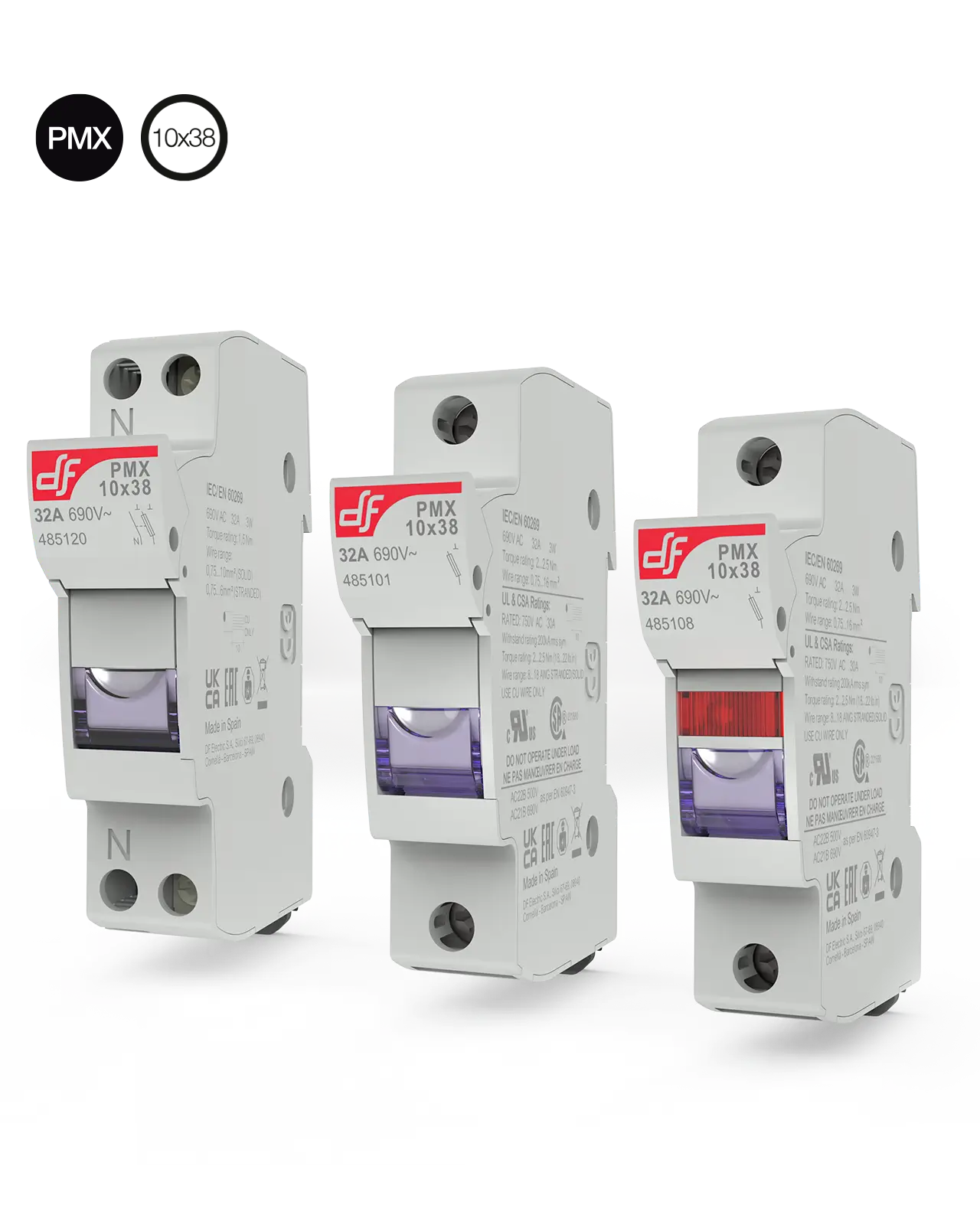

Range
| SIZE | Un | In | POLES | MODULES | REFERENCE | |
|---|---|---|---|---|---|---|
WITHOUT INDICATOR |
WITH INDICATOR |
|||||
| 10x38 | 690V AC 750V DC |
32A | 1P | 1 | 485101   |
485108 |
| N | 1 | 485102 |
- | |||
| 1P + N | 1 | 485120 | - | |||
| 1P + N | 2 | 485103 |
485109 |
|||
| 2P | 2 | 485104 |
485110 |
|||
| 3P | 3 | 485105 |
485111 |
|||
| 3P + N | 3 | 485121 | - | |||
| 3P + N | 4 | 485106 |
485112 |
|||
| 4P | 4 | 485107 |
485113 |
|||
| 24V DC | 32A | 1P | 1 | - | 485114 |
|
| 2P | 2 | - | 485116 |
|||
Technical data
| Rated current | 32A |
| Rated voltage | 690V AC | 750V DC |
| Rated power dissipation | 3W |
| Maximum power dissipation | 4W |
| Power dissipation per pole (with neutral link) |
80% In 0,27W 100% In 0,43W |
| Power dissipation (1P+N | 1 module) |
80% In 1,1W 100% In 1,8W |
| Power dissipation (3P+N | 3 modules) |
80% In 1,8W 100% In 3W |
| Utilization category (EN 60947-3) | 500V AC AC-22B 690V AC AC-21B 750V DC DC-20B |
| Pollution degree | 3 |
| Protection index * | IP20 |
| Rated impulse withstand voltage | 6kV U imp |
| Ambient temperature of service | -40°C ... 70°C (with carrier operation) -50°C ... 80°C (without carrier operation) |
| Storage temperature | -50°C ... 80°C |
| * To obtain an IP20 rating with cable protection of Ø ≤4.5mm, use the special protection accessory. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
UL4248-1 Fuse holders
UL486E Wiring terminals
CSA C22.2 Nº 4248-1 Fuse holder assemblies
CSA 22.2 Nº 65 Wire connectors
Certifications
Dimensions
| 1P | N | 1P + N | 2P | 3P | 3P + N | 4P |
| 57gr | 60gr | 117gr | 114gr | 171gr | 231gr | 228gr |
Accessories
Multipolar assembly
Standard system by DF Electric: 2 clips and 1 pin for each union between poles.
| REFERENCE | DESCRIPTION |
| 480005 | Pins for multipole assembly |
| 485050 | Handle ties for multipole assembly |
Identification by label
Open the label holder part with the fuse holder closed, put on the label and close it. Label measures: 11x9mm.
Special IP20 protection
The accessory mut be positioned in the wire entries, if it’s neccesary to achieve the IP20 degree of protection with thin wires.
| REFERENCE | DESCRIPTION |
| 485052 | Special IP20 protection accessory |
Phase separators accessory
The accessory increases the distance between phases in multipolar asemblies.
| REFERENCE | DESCRIPTION |
| 485053 | Phase Separator accessory |
Screws protection accessory
Protection accesory to avoid the screws manipulation and improve the protection degree.
| REFERENCE | DESCRIPTION |
| 485656 | Screws protection accessory |
Lock of the fuse holder
Systems to avoid the operation and connection when the fuse holder is open or closed.
| REFERENCE | DESCRIPTION |
| 485051 | Lock accessory |
Fusing Indicator replacement instructions
Compatible
 |
 |
 |
 |
|
| 10x38 Cylindrical gG fuse link | 10x38 Cylindrical aM fuse link | 10x38 Cylindrical gR Semiconductor fuse link | 10x38 Cylindrical aR Semiconductor fuse link | |
| U | 500V 400V |
500V 400V |
690V | 690V |
| In | 0,5A...25A (500V) 32A (400V) |
0,16A...16A (500V) 20A | 25A (400V) |
1A...32A | 1A...32A |
| Breaking capacity | 120kA | 120kA | 200kA 30kA @440V DC |
200kA 30kA @700V DC |
Other sizes
 |
 |
 |
|
|
| NEW | ||||
 |
 |
 |
 |
|
|---|---|---|---|---|
| U | 400V DC/AC | 690V AC 750V DC |
690V AC 750V DC |
1000V AC/DC |
| IN | 25A | 50A | 100A | 100A |
