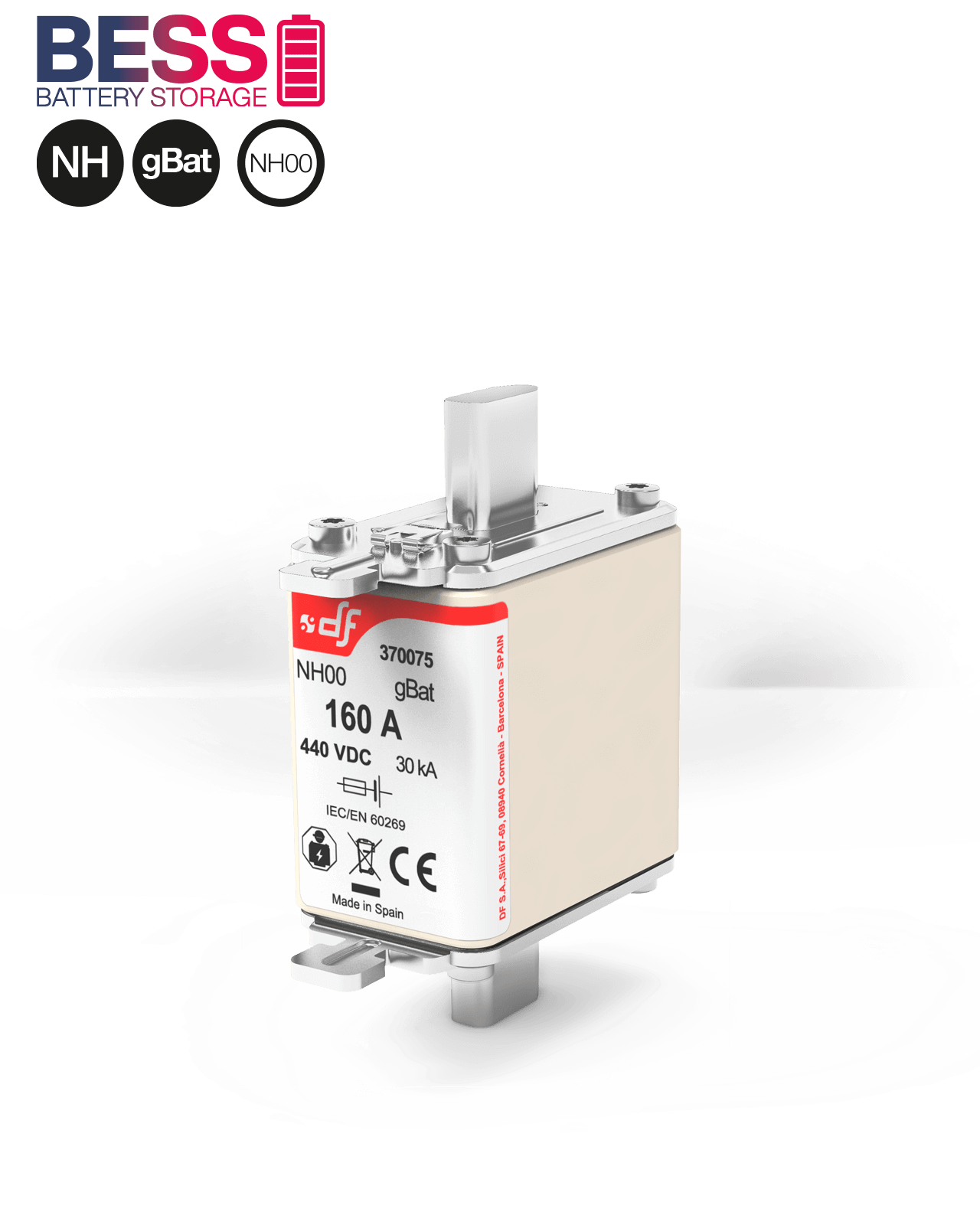

Range
| SIZE | Un (V DC) | In (A) | REFERENCE |
| NH00 | 440V L/R ≤ 10ms |
125 | 370070 |
| 160 | 370075 |
Technical data
| Rated voltage | 440V DC L/R ≤ 10ms |
| Rated currents | 125A | 160A |
| Rated breaking capacity | 30kA |
| Operating class | gBat |
| Storage temperature | -40°C ... 90°C |
| Operating temperature * | -40°C ... 80°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC 60269-7
RoHS Compliant
Dimensions
| A | B | C | D | E | F | G | H | I | J | K | L |
| 49 | 44 | 52 | 78,5 | 15 | 10 | 9,5 | 6 | 29 | 35 | 47 | 59 |
Weight 180gr
t-I characteristics
Power dissipation
| RATED CURRENT (A) |
REFERENCE | POWER LOSS 0,8·In (W) |
POWER LOSS In (W) |
PREARCING I2t 2s) |
OPERATING I2t at Un (A2s) |
|---|---|---|---|---|---|
| 125 | 370070 | 8,3 | 14,7 | 6850 | 8800 |
| 160 | 370075 | 10,5 | 18,2 | 12900 | 16500 |
Compatible
 |
|||
| NH00 ST 690V/800V fuse base | |||
| U | 690V 800V |
||
| In | 160 A | ||
Other sizes
 |
 |
 |
 |
|
 |
 |
 |
 |
|
|---|---|---|---|---|
| U | 440V DC | 550V DC | 550V DC | 550V DC |
| IN | 20A...100A | 200A...280A | 315A...450A | 500A | 630A |
| Breaking capacity | 30kA | 30kA | 30kA | 30kA |
