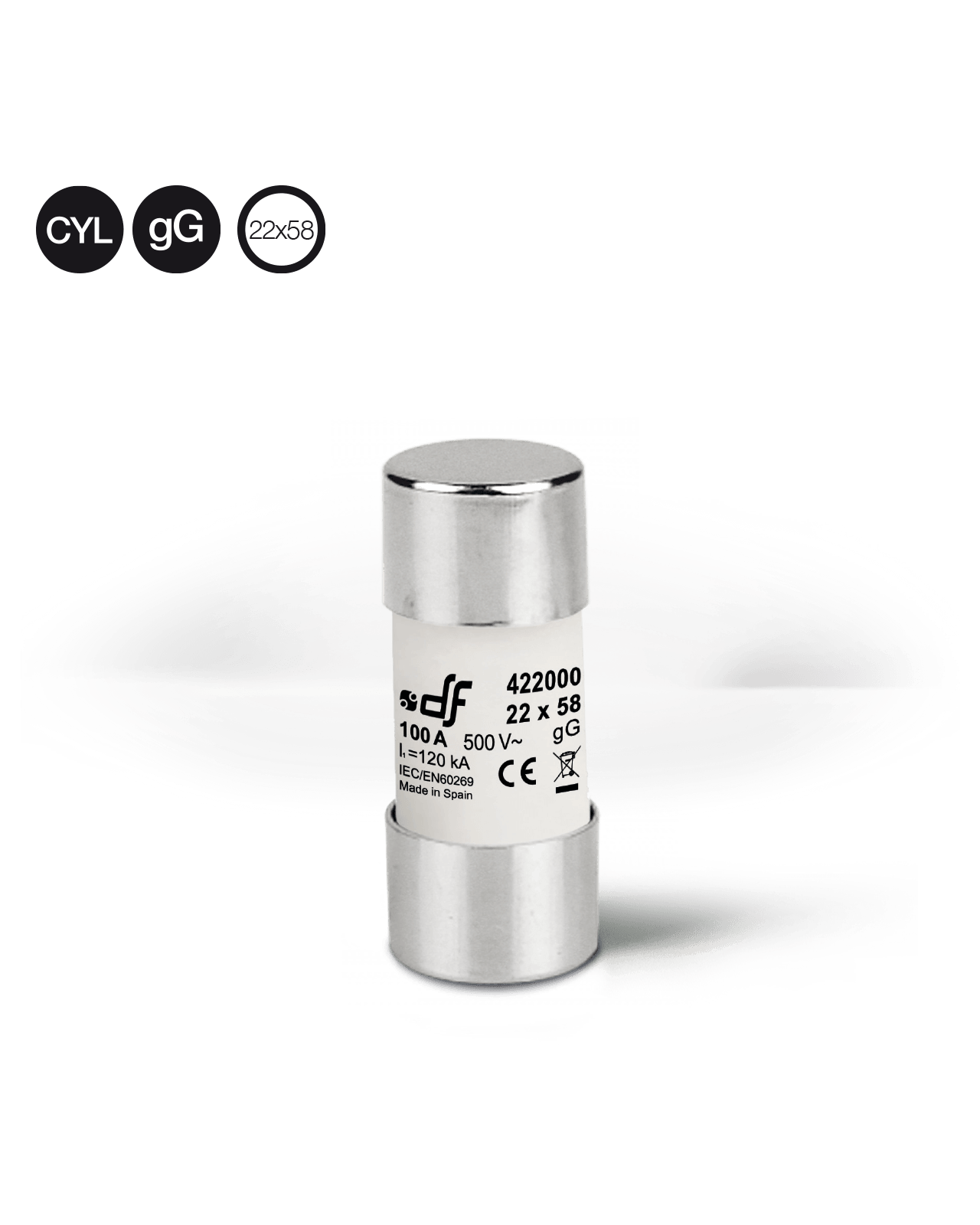

Range
| SIZE | Un (V) | In (A) | REFERENCE | |
|---|---|---|---|---|
WITHOUT INDICATOR |
WITH INDICATOR |
|||
| 22x58 | 690V | 2 | 422002 | 422102 |
| 4 | 422004 | 422104 | ||
| 6 | 422006 | 422106 | ||
| 8 | 422008 | 422108 | ||
| 10 | 422010 | 422110 | ||
| 12 | 422012 | 422112 | ||
| 16 | 422016 | 422116 | ||
| 20 | 422020 | 422120 | ||
| 25 | 422025 | 422125 | ||
| 32 | 422032 | 422132 | ||
| 40 | 422040 | 422140 | ||
| 50 | 422050 | 422150 | ||
| 63 | 422063 | 422163 | ||
| 500V | 80 | 422080 | 422180 | |
| 100 | 422000 | 422100 | ||
| 125* | 422015 | 422115 | ||
| * Overrating fuse links | ||||
Range with striker
| SIZE | Un (V) | In (A) | REFERENCE | |
|---|---|---|---|---|
WITH STRIKER |
||||
| 22x58 | 690V | 2 | - | |
| 4 | 422204 | |||
| 6 | 422206 | |||
| 8 | 422208 | |||
| 10 | 422210 | |||
| 12 | 422212 | |||
| 16 | 422216 | |||
| 20 | 422220 | |||
| 25 | 422225 | |||
| 32 | 422232 | |||
| 40 | 422240 | |||
| 50 | 422250 | |||
| 63 | 422263 | |||
| 500V | 80 | 422280 | ||
| 100 | 422200 | |||
| 400V | 125* | 422215 | ||
| * Overrating fuse links | ||||
Technical data
| Rated voltage | 690V +5% 500V +10% 400V +10% |
| Rated currents | 2A...125A |
| Rated breaking capacity | 80kA (690V) 120kA (500V/400V) |
| Operating class | gG |
| Rated frequency | 42…62Hz |
| Storage temperature | -40°C ... 90°C |
| Operating temperature * | -40°C ... 80°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
RoHS Compliant
Dimensions
| A | B | C | D | E |
| 22,2 | 58 | 15,5 | 8 | 3,7 |
Weight 50gr
t-I characteristics
Cut-off characteristics
Power dissipationI2t Values
| RATED CURRENT (A) |
REFERENCE * | POWER DISSIPATION (W) |
PREARCING I2t (A2s) |
I2t 690V (A2s) |
I2t 500V (A2s) |
I2t 400V (A2s) |
|---|---|---|---|---|---|---|
| 2 | 422002 | 0,90 | 7,0 | 25 | 17,6 | 14,6 |
| 4 | 422004 | 1,10 | 45 | 150 | 108 | 90 |
| 6 | 422006 | 1,30 | 70 | 230 | 166 | 140 |
| 8 | 422008 | 1,90 | 80 | 260 | 188 | 158 |
| 10 | 422010 | 1,50 | 120 | 420 | 297 | 248 |
| 12 | 422012 | 1,80 | 180 | 600 | 431 | 362 |
| 16 | 422016 | 3,00 | 270 | 880 | 636 | 536 |
| 20 | 422020 | 3,10 | 500 | 1600 | 1162 | 981 |
| 25 | 422025 | 3,30 | 800 | 2900 | 2034 | 1688 |
| 32 | 422032 | 4,30 | 1200 | 4000 | 2871 | 2412 |
| 40 | 422040 | 4,40 | 2500 | 8000 | 5808 | 4907 |
| 50 | 422050 | 5,50 | 5100 | 20000 | 13728 | 11262 |
| 63 | 422063 | 5,95 | 10000 | 39000 | 26811 | 22011 |
| 80 | 422080 | 7,00 | 15000 | - | 60000 | 45471 |
| 100 | 422000 | 8,50 | 39800 | - | 91150 | 77229 |
| 125 | 422000 | 10,0 | 56000 | - | 145300 | 120074** |
| * Same data for INDICATOR and STRIKER range. ** REF 422215 |
||||||
Compatible
 |
|
| PMX 22x58 fuse holder | |
| U | 690V AC 750V DC |
| In | 100A |
Other sizes
 |
 |
 |
|
 |
 |
 |
|
|---|---|---|---|
| U | 400V | 500V 400V |
690V 500V 400V |
| IN | 0,5A...25A | 0,5A...25A (690V) 32A (400V) |
1A...25A (690V) 32A | 40A (500V) 50A (400V) |
| Breaking capacity | 20kA | 120kA | 80kA (690V) 120kA (500V/400V) |
