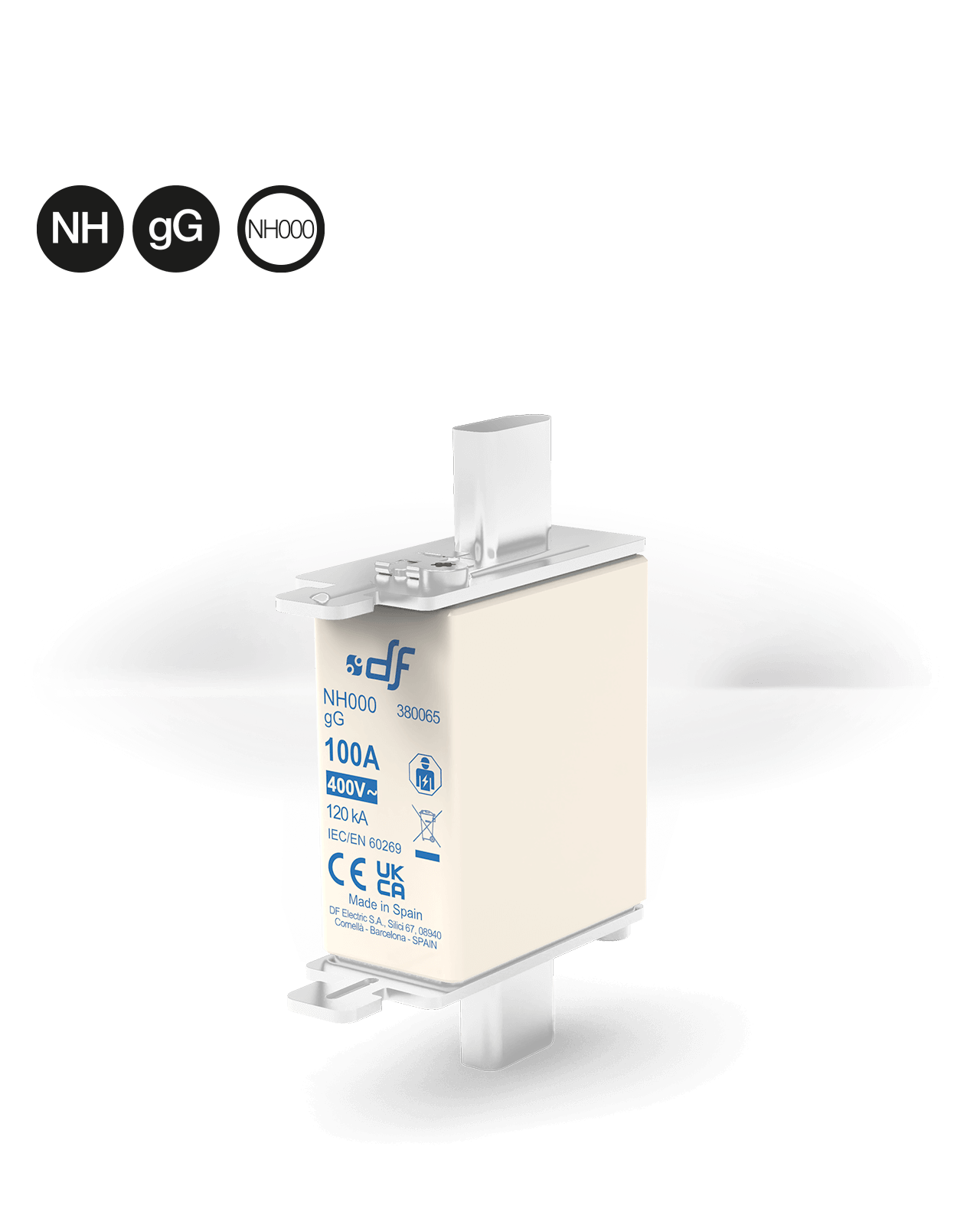

Range
| SIZE | Un (V AC) | In (A) | REFERENCE |
| NH000 | 400V | 10 | 380015 |
| 16 | 380020 | ||
| 20 | 380025 | ||
| 25 | 380030 | ||
| 32 | 380035 | ||
| 35 | 380040 | ||
| 40 | 380045 | ||
| 50 | 380050 | ||
| 63 | 380055 | ||
| 80 | 380060 | ||
| 100 | 380065 |
Technical data
| Rated voltage | 400V AC +10% |
| Rated currents | 10A...100A |
| Rated breaking capacity | 120kA |
| Operating class | gG |
| Rated frequency | 42...62Hz |
| Storage temperature | -40°C ... 90°C |
| Operating temperature * | -40°C ... 80°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. | |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
RoHS Compliant
Dimensions
| A | B | C | D | E | F | G | H | I | J | K | L |
| 49 | 45 | 52 | 78,5 | 15 | 10 | 9,5 | 6 | 21 | 35 | 40 | 53 |
Weight 120gr

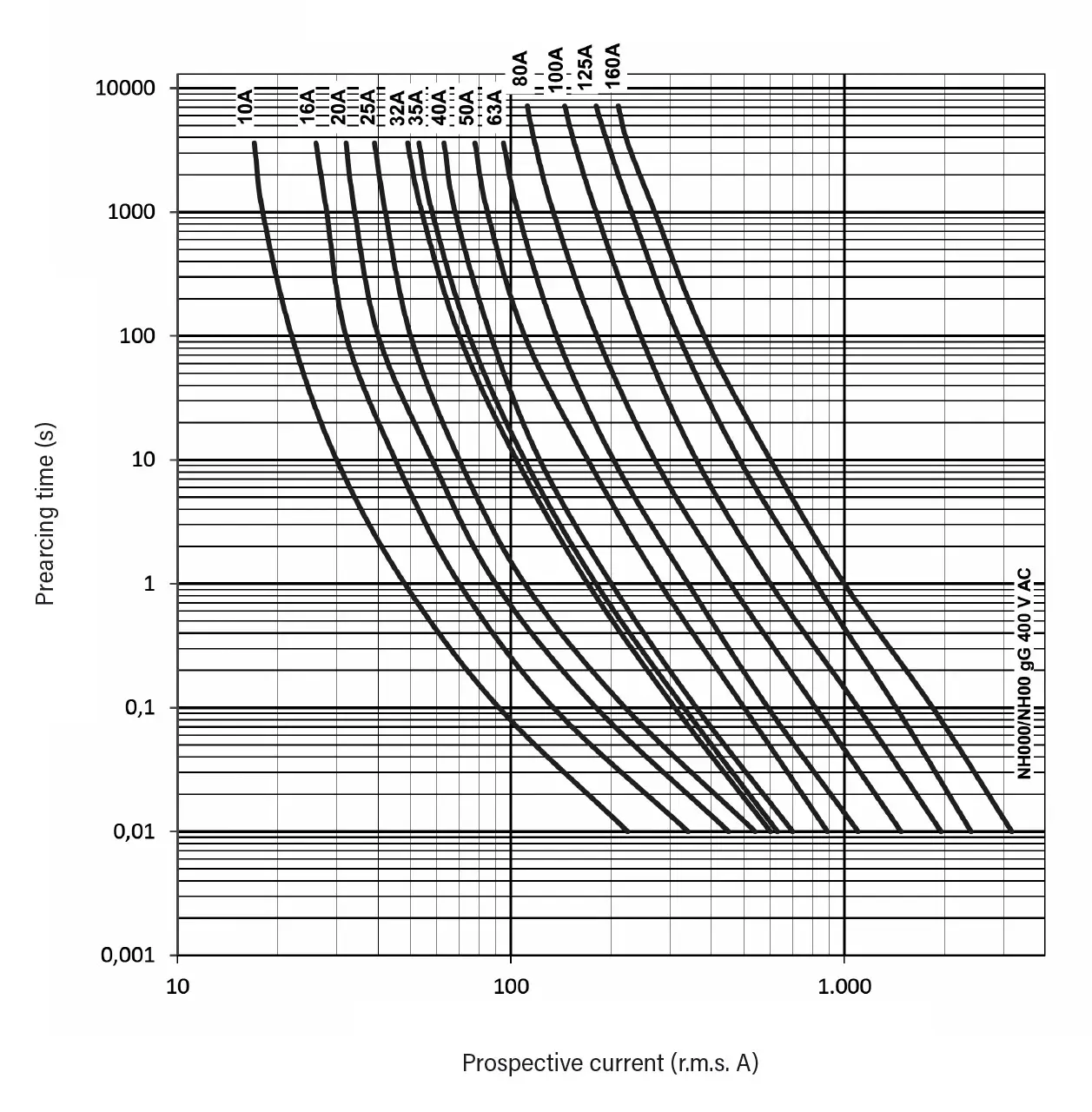

t-I characteristics

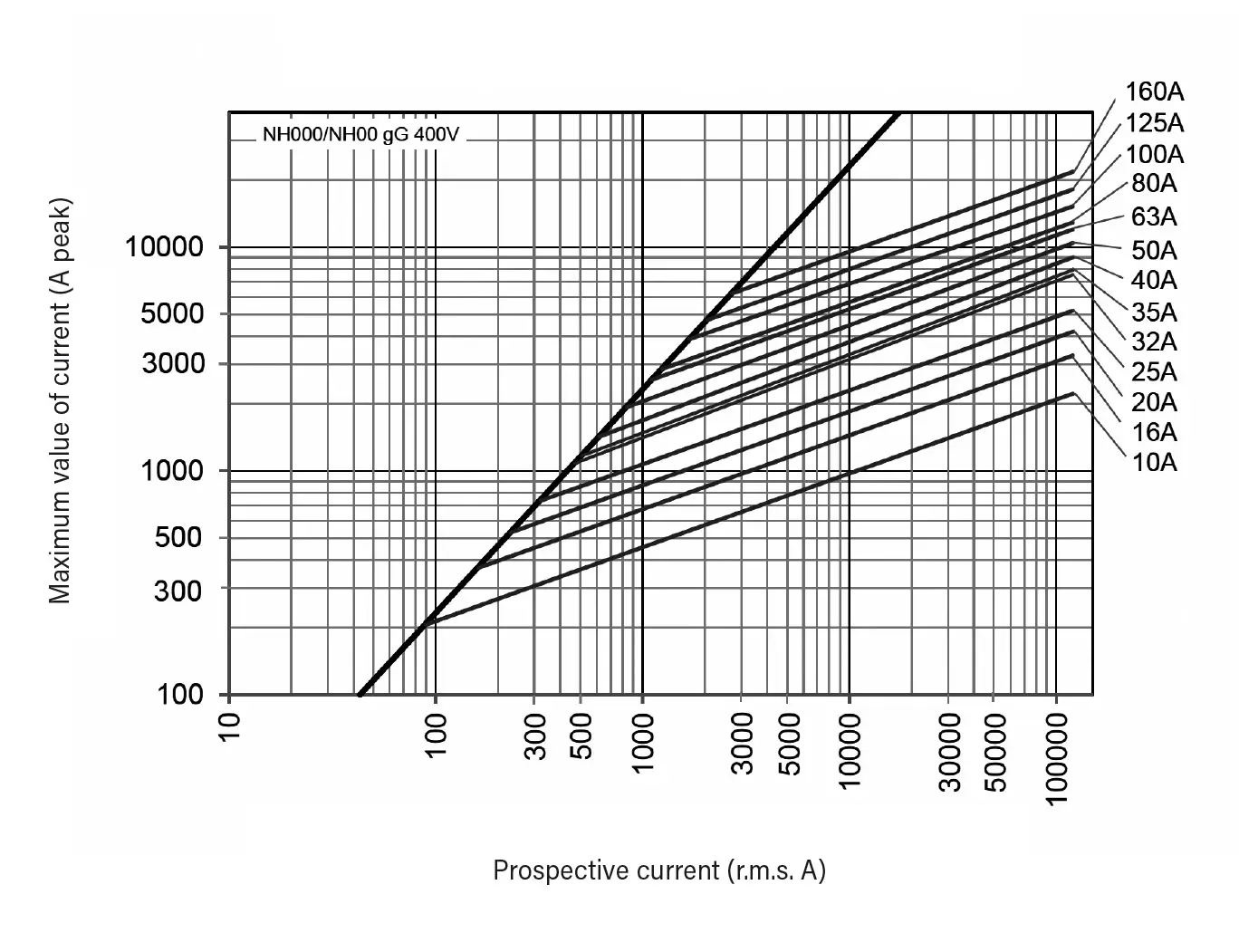

Cut-off characteristics
Power dissipation
| RATED CURRENT (A) |
REFERENCE | POWER DISSIPATION (W) |
PREARCING I2t (A2s) |
TOTAL I2t 230V (A2s) |
TOTAL I2t 400V (A2s) |
|---|---|---|---|---|---|
| 10 | 380015 | 1,1 | 62 | 150 | 290 |
| 16 | 380020 | 1,8 | 200 | 490 | 950 |
| 20 | 380025 | 2,0 | 415 | 1025 | 1980 |
| 25 | 380030 | 2,4 | 800 | 1950 | 3800 |
| 32 | 380035 | 2,9 | 2670 | 4050 | 5500 |
| 35 | 380040 | 3,2 | 3100 | 4700 | 6380 |
| 40 | 380045 | 3,5 | 4570 | 6920 | 9400 |
| 50 | 380050 | 3,7 | 6430 | 11100 | 16600 |
| 63 | 380055 | 4,6 | 9800 | 16960 | 25430 |
| 80 | 380060 | 4,9 | 16600 | 32300 | 52840 |
| 100 | 380065 | 5,5 | 29800 | 56140 | 89650 |
Compatible
 |
 |
 |
|
| NH00 ST 690V/800V fuse base | Microswitch for NH fuse links | NH ST 1000V AC/DC Fuse puller | |
| U | 690V 800V |
250V AC | 1000V DC |
| In | 160 A | 5 A | |
Other sizes
|
|
|
|
|
 |
 |
 |
 |
|
|---|---|---|---|---|
| U | 400V | 400V | 400V | 400V |
| IN | 125A | 160A | 50A...250A | 100A...400A | 315A...630A |
| Breaking capacity | 120kA | 120kA | 120kA | 120kA |
