Electrical Protection in Energy Storage Systems BESS: Keys to a Safe Installation

From residential installations to large-scale utility projects, batteries have become the heart of the energy transition. However, along with new opportunities come new risks that must be managed with precision and rigor: electrical protection in BESS systems is critical to ensure safety, reliability, and service continuity.

This article explores the key aspects of a safe installation, the applicable standards, and the role of specific solutions such as DF Electric’s BATTERY family, designed to meet the demanding challenges of this sector.

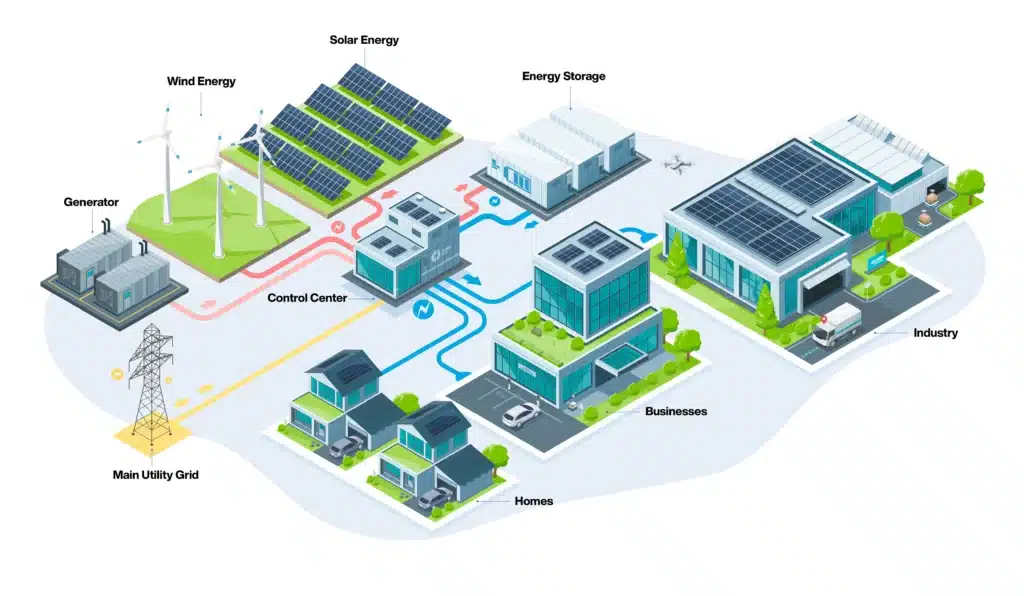

Energy Storage Systems (BESS) have become a key component in the transition toward a more flexible and sustainable power grid. Their role in stabilizing the grid, storing renewable surpluses, and ensuring supply during critical moments makes them strategically essential infrastructures. However, their technical complexity and high energy density also involve significant risks that must not be underestimated.

A BESS system concentrates large amounts of energy in a relatively small space, creating highly demanding operational conditions, such as:

• High DC voltages, reaching up to 1500 VDC in utility-scale applications.
• Intensive charge/discharge cycles, subjecting cells and electrical connections to continuous stress.
• Integration with inverters, PCS, protection panels, and smart grids, where any failure can trigger cascading effects.
• Critical operational environments (hospitals, data centers, charging stations) where electrical continuity is non-negotiable.

In this context, fuses and protection devices must be specifically designed for DC applications. The difference from AC systems is crucial: while AC current naturally crosses zero and stops periodically, DC current does not, making safe arc interruption a far greater technical challenge.

A fuse not adapted to DC could fail under overload or short-circuit conditions, with serious consequences for both personal safety and the integrity of the batteries and power electronics.

Hence the need for solutions such as DF Electric’s BATTERY range, developed to provide:

• High DC breaking capacities, even under high fault current scenarios.
• Low thermal dissipation, contributing to overall system energy efficiency.
• Long-term durability and reliability, adapted to continuous operation cycles.

Ultimately, electrical protection is the first line of defense that ensures an ESS system is not only efficient but also safe and sustainable over time.

The installation of BESS systems is governed by a set of international and national standards that define safety criteria:

• IEC 60269-7: specific standard for fuses in battery applications.
• UL 9540A: safety testing methods for BESS.
• UNE-EN 62932: on electrical energy storage in renewable systems.
• Local low-voltage regulations and national grid codes.

Compliance with these standards is not just a legal requirement—it is a quality and safety guarantee for installers and integrators seeking to stand out in the market.

The BATTERY range from DF Electric is designed to cover all DC protection needs—from small self-consumption systems to large utility-scale storage projects. Each fuse family meets specific voltage and application requirements, ensuring maximum safety, reliability, and durability.

gBat 600V DC Cylindrical Fuses

These compact and versatile cylindrical fuses are ideal for small-scale residential and commercial installations.

• Standard format: easily integrated into modular fuse holders for typical electrical panels.
• Fast, reliable protection: quick response to DC overloads and short circuits, preventing damage to batteries and connected devices.
• Typical applications: photovoltaic self-consumption systems, small hybrid setups, office or retail backup systems.
• Key advantage: simple installation and maintenance with cost-optimized safety for smaller projects.

gBat cylindrical fuses are the first line of defense in residential and commercial installations that demand reliability and ease of integration.

NH gBat 440V–550V DC Fuses

Designed for medium-power systems, these fuses offer a balance between robust safety and operational flexibility.

• Mechanical strength: NH format ensures durability in demanding environments.
• Optimized protection for mid-range voltages: ideal for commercial and industrial systems combining energy storage with solar or wind generation.
• Compatible with combiner boxes and DC panels: easy integration into existing systems.
• Typical applications: industrial buildings with PV and storage, local microgrids, charging stations with intermediate storage.
• Key advantage: a perfect transition between residential and industrial solutions.

NH gBat 1000V DC Fuses

Designed for high-power installations, these fuses ensure reinforced safety and operational continuity under demanding conditions.

• High breaking capacity: engineered to handle large fault currents in high-density energy systems.
• Low power loss: minimal thermal dissipation contributes to global system efficiency.
• Typical applications: large-scale storage plants, hybrid solar parks, backup systems in hospitals or critical facilities.
• Key advantage: maximize safety in high-voltage systems, preventing catastrophic failures in multi-million-euro installations.

NH gBat 1500V DC Fuses

The most advanced solution in the BATTERY range, designed for utility-scale and large storage projects operating up to 1500 VDC.

• Full compliance with IEC 60269-7: international fuse standards for battery systems.
• Extreme resistance: built for harsh thermal and electrical environments.
• Guaranteed safety: superior breaking capacity ensures reliable protection against high-power short circuits.
• Typical applications: large-scale storage in solar or wind parks, grid interconnections, data centers, and critical infrastructures.
• Key advantage: enables engineering firms and system integrators to operate safely at the highest voltage levels available on the market.

NH gBat 1500V DC fuses are the essential safety guarantee for large-scale projects where any electrical failure can have million-euro consequences.

Electrical protection in BESS systems is no longer optional—it is a strategic pillar for safety, efficiency, and sustainability. An electrical failure can compromise system integrity, cause significant financial losses, and undermine confidence in energy storage technology—a cornerstone of the decarbonized energy transition.

With the BATTERY range, DF Electric provides a comprehensive, certified protection solution that adapts to every phase of energy storage deployment:

• From residential and commercial systems, where simplicity and safety are key,
• To industrial and utility-scale projects, where reliability and fault endurance are critical.

DF Electric’s proposal goes beyond a product catalog: it represents a partnership strategy for installers, integrators, and engineering firms, supported by an R&D team, an in-house testing laboratory, and a strong commitment to sustainable innovation.
